Jade Crown Hydraulic Power Unit Applications

Jade Crown hydraulic power units are widely used in mobile, industrial, and lifting equipment applications. From dump trailers and snow plows to forklifts, lift tables, car lifts, truck tailgates, and medical care equipment, our power packs are designed to deliver stable pressure, reliable flow, and long service life.

We provide single-acting and double-acting DC hydraulic power units for equipment that requires compact structure, battery-powered operation, and dependable lifting or lowering performance.

Find Your Application

Find Hydraulic Power Unit Solutions by Application

Different equipment requires different hydraulic power unit configurations. Whether you need power for lifting, lowering, tilting, pushing, or load control, Jade Crown can provide hydraulic power pack solutions based on your application requirements.

How to Choose a Hydraulic Power Unit for Your Application

To select the right hydraulic power unit, consider the required lifting capacity, cylinder type, voltage, flow rate, system pressure, reservoir volume, and control method. If you are not sure which configuration fits your equipment, our engineering team can help match the right power pack based on your application.

Truck & Trailer

Material Handling

Vehicle & Work Platform Lifts

Hydraulic power units for dump trailers, liftgates, and heavy-duty trailer lifting systems, including reliable dump trailer hydraulic pump solutions for stable lifting and lowering performance.

  • Dump Trailers
  • Heavy Duty Dump Trailers
  • Telescopic Dump Trailers
  • Roll Off Trailers
  • Liftgate

Compact hydraulic power units for forklifts, lift tables, electric stackers, and material handling equipment, including lift table hydraulic pump and scissor lift hydraulic pump solutions for stable lifting and reliable load control.

Reliable hydraulic power units for car lifts, auto lifts, truck hoists, and aerial platforms, including car lift power unit solutions for stable lifting and controlled lowering performance.

  • Car Lift
  • Auto Lift
  • Truck Hoists
  • Aerial Platforms

Electric Basketball Power Units

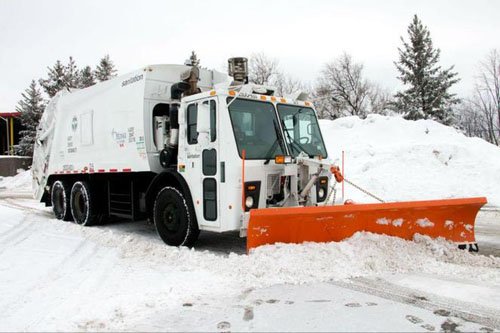

Snow Plow Parts

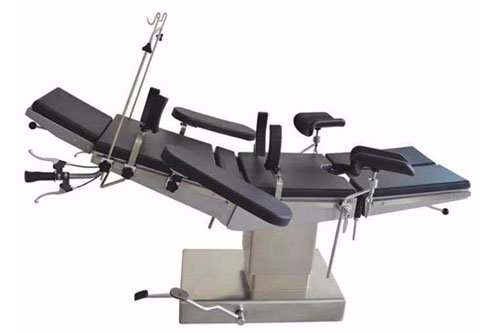

Medical Equipment

Waste Recycling Equipment

Other Industrifs

  • Refuse or Garbage Trucks
  • Tarper Systems – Rack N Pinion
  • Stationary Compactors
  • Farm waste baler
  • Industrial, Vertical Balers
  • Recycle Equipment
  • Agriculture
  • Mining
  • Forestry
  • Railroad
  • Oilfield
  • Industrial
  • Marine

Hydraulic Power Unit Specifications for Different Applications

Item Specification Item Specification
Motor Power 0.35 kW – 4.5 kW Flow Rate 3 L/min – 25 L/min
Operating Pressure Max. 250 bar Duty Cycle S3 intermittent duty
Motor Voltage 12 V DC, 24 V DC, 48 V DC, and 72 V DC IP Rating Min. IP54 according to DIN EN 60034-5
Pump Displacement 0.38 cm³/rev – 8.0 cm³/rev Reservoir Volume 1.8 L – 25 L
Relief Valve Set at 160 bar, adjustable from 50 bar to 230 bar as standard Hydraulic Manifold Oil Port Thread 3/8″ BSPP, SAE 6
Electric Control System 2-button remote pendant with cable. Wireless remote control pendant WRCP12 is also available and can control DC hydraulic power packs within 100 meters. Viscosity Range 10–380 mm²/s recommended
Filtration Maximum permissible contamination level of the operating fluid: ISO 4406 Class 21/19/16 Cooling Air-cooled motor
Weight 15 kg – 25 kg Installation Position Vertical or horizontal
Operating Fluid Temperature -20°C to +80°C max. Ambient Temperature Range -20°C to +40°C max.

Your Hydraulic Power Unit Solution Starts Here

Whether you need a standard hydraulic power unit or a custom power unit solution, our team is here to deliver precision-engineered products tailored to your needs. Let’s bring your project to life with the right hydraulic power unit solution.

Contact Us

Interested in our products, pricing, MOQ, or customized solutions? Fill out the form below to submit your inquiry or request a quote, and our team will get back to you within 24 hours.

Hydraulic Power Unit Applications FAQ

A: A hydraulic power pack unit provides hydraulic pressure and flow for lifting, lowering, tilting, pushing, and load control. It is commonly used in dump trailers, car lifts, lift tables, forklifts, snow plows, and truck tailgates.

Yes. We supply custom hydraulic power units tailored to your application, including options for motor voltage, flow rate, system pressure, reservoir size, manifold block design, oil port threads, and control functions.

To select the right hydraulic power pack, consider your equipment type, cylinder requirements, working pressure, flow rate, voltage, tank capacity, duty cycle, and installation space. Our engineering team can assist in finding the ideal configuration for your application.

Yes. As professional hydraulic power pack suppliers, we support bulk orders, wholesale supply, and OEM cooperation. We deliver stable quality, reliable lead times, and flexible customization for industrial and mobile applications.

We are certified hydraulic power pack manufacturers with in-house production of power units, valves, and manifold systems. This allows us to control quality, ensure timely delivery, and offer full customization.

Yes. We provide hydraulic power pack for sale for common applications such as dump trailers, car lifts, lift tables, forklifts, and snow plows. Both standard models and custom configurations are available.

Compared with other hydraulic power unit manufacturers, Jade Crown focuses on high-quality production, engineering support, OEM customization, and reliable supply. We help customers select the right hydraulic power unit solution for their specific application.
