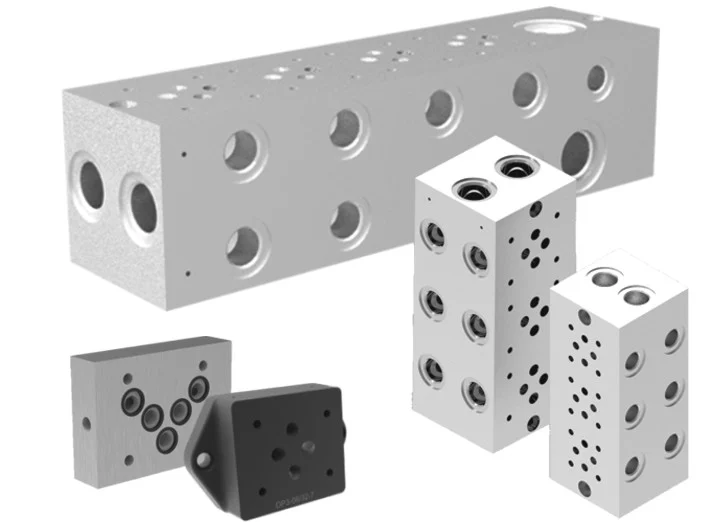

Hydraulic manifold blocks play a critical role in managing and directing fluid flow between various components within hydraulic systems. These systems typically involve hydraulic pumps, cylinders, actuators, and valves, all of which depend on precise fluid control for optimal performance. As a trusted hydraulic manifolds manufacturer, we design and produce high-quality hydraulic valve manifold to meet the rigorous demands of industries such as construction, agriculture, food processing, and marine equipment.

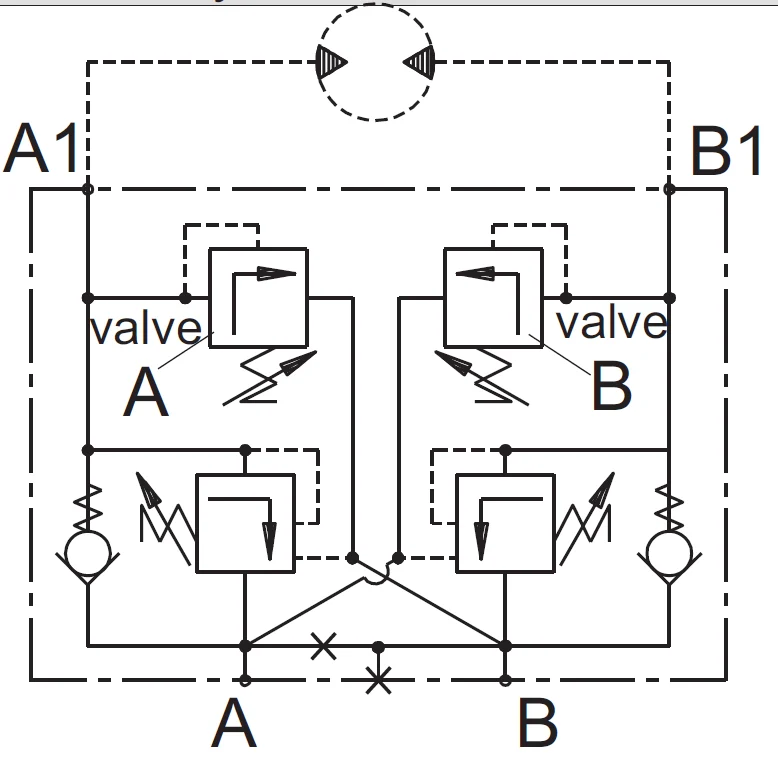

Hydraulic Manifold Block Principle Diagram
Our hydraulic manifold blocks are designed to meet your specific needs, offering tailored solutions for various applications. Whether you need a manifold block capable of handling specific operating pressures or one designed to fit within a restricted space, we can deliver customized designs. Get in touch with us to discuss your requirements and let our team craft a hydraulic blocks that suits your application perfectly.
Key Specifications
| Specification | Details |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick |
| Spool Options | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Monoblock valve |
| Section Options | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
Benefits of Hydraulic Valve Manifold
- Space-Efficient: Combines multiple functions in one compact unit, reducing tubing and improving layout.
- Custom Solutions: Tailored to your specific needs for optimal performance and reliability.
- Leak Prevention: Fewer connections reduce leak risks, enhancing system integrity.
- Precision Control: Provides fast, accurate control of hydraulic operations.
- Durable Construction: Made from high-strength materials for long-lasting performance in tough environments.
Applications of Hydraulic Blocks
Hydraulic manifolds are used across various industries for both stationary and mobile applications, including:
- Injection Molding: Ensures precise fluid control for molding processes with compact and flexible integration.
- Metal Forming: Provides reliable pressure control in presses and pumps, with modular design for customization.
- Metalworking: Controls pressure and movement in cutting machines, improving precision and productivity.
- Mobile Machinery: Used in agricultural, forestry, and construction machinery, ensuring reliable performance under tough conditions.
Why Choose Jade Crown Hydraulic Manifold Blocks
At Jade Crown, we take pride in being a trusted hydraulic manifolds manufacturer. Our custom hydraulic valve manifold are designed to simplify your system, reduce installation time, and ensure maximum efficiency. We offer a range of material options including steel, cast iron, and aluminum to meet your specific pressure requirements. With a commitment to quality, competitive pricing, and exceptional customer service, Jade Crown is your partner for all hydraulic blocks needs.
