Description

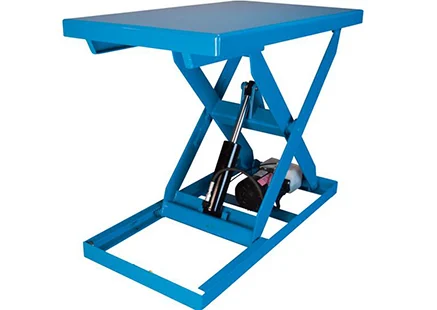

This high-performance lift table hydraulic pump unit is a compact and integrated power solution specifically designed for scissor lifts, pallet tables, and industrial lifting platforms. Engineered for reliability and efficiency, it provides a stable hydraulic source to ensure smooth and safe lifting operations in demanding environments.
Drawing
Standard hydraulic circuit diagram shown below. We provide professional customization for oil port threads, manifold blocks, and mounting brackets to meet your specific engineering requirements.
Precautions
- Importance of Hydraulic Oil: Since over 80% of hydraulic system failures are caused by oil contamination, using the correct oil is essential for the reliability of your lift table hydraulic pump.
- Recommended Oil Grade: We recommend using N46 hydraulic oil with a viscosity of 22-46mm²/s, in accordance with ISO 3448 classifications.
- Filtration Requirements: Before use, the hydraulic oil must be filtered through a 10-30μm filter to ensure system cleanliness.
- Pre-Mounting & Initial Check: Thoroughly clean all relevant hydraulic parts before mounting the mini power pack. Always check the oil level in the tank after the initial run.
- Oil Change Schedule: The first oil change is required after 100 operation hours, and subsequently once every 3,000 hours.
- Duty Cycle (S3 Duty): This lift table hydraulic pump is designed for non-continuous operation (S3 duty), following a cycle of 30 seconds on and 270 seconds off.
- Thermal Equilibrium: To prevent the motor from overheating, ensure the ratio between interval time and operation time is 9:1.
- Customization Options: We are at your disposal to customize the lift table hydraulic pump with your preferred power, flow, pressure, and tank capacity.
| Model |
Volt engine |
motor Power |
Rated Speed |
Displacement |
System Pressure |
Tank Capacity |
L(mm) |
| Hpp-2F2.512A2204 |
220 volt AC |
2.2kW |
2800rpm |
2.5mL/r |
18MPa |
12L |
677 |
| Hpp-2E3.214A2204 |
3.2mL/r |
14MPa |
14L |
727 |
| Hpp-2D3.716A2204 |
3.7mL/r |
12MPa |
16L |
777 |
| HPP-2E3.716A3805 |
380 volt AC |
3KW |
3.7mL/r |
16MPa |
16L |
777 |
| HPP-2E4.220A3805 |
4.2mL/r |
15MPa |
20L |
877 |
| HPP-2D525A3805 |
5mL/r |
12MPa |
25L |
1002 |
Need technical details or pricing? Please Contact Us for an immediate response and expert guidance on your project.
