Description

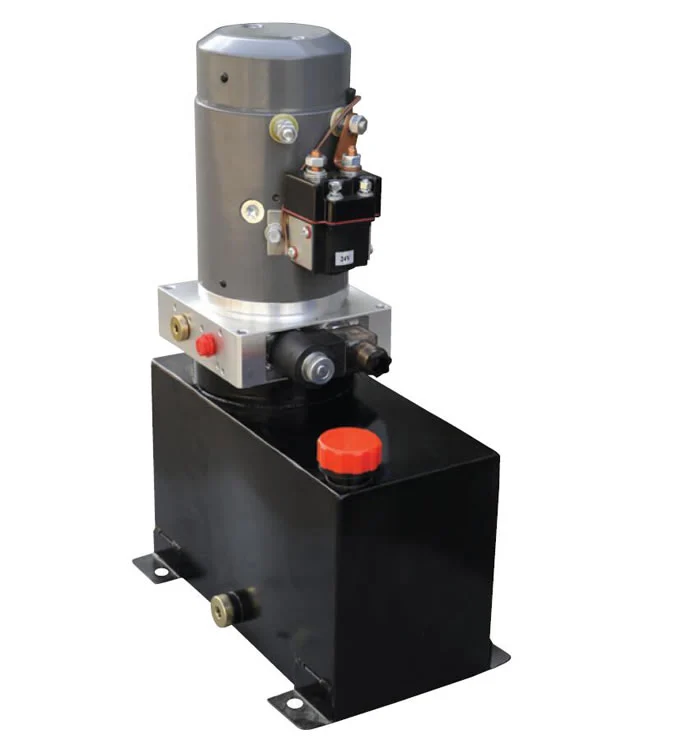

This Electric Pallet Jack Power Packs has been widely used in the industry of logistic devices such as fork lift, electric pallet jack and Electric pallet stacker.
It includes a 24V/DC/2KW motor. The reservoir capacity is 0.92 to 2.11 gal. It also has the cartridge valve and a G1/4 or M14 x1.5 oil port. The flow of the power unit is 0.79 to 1.78 GPM and its system pressure is 2900 PSI.
An inbuilt throttling valve is available at the oil return port, which keeps the hydraulic device descending steadily at a constant speed. This design is also helpful for simple operation and convenient maintenance as well as good pressure maintaining performance.

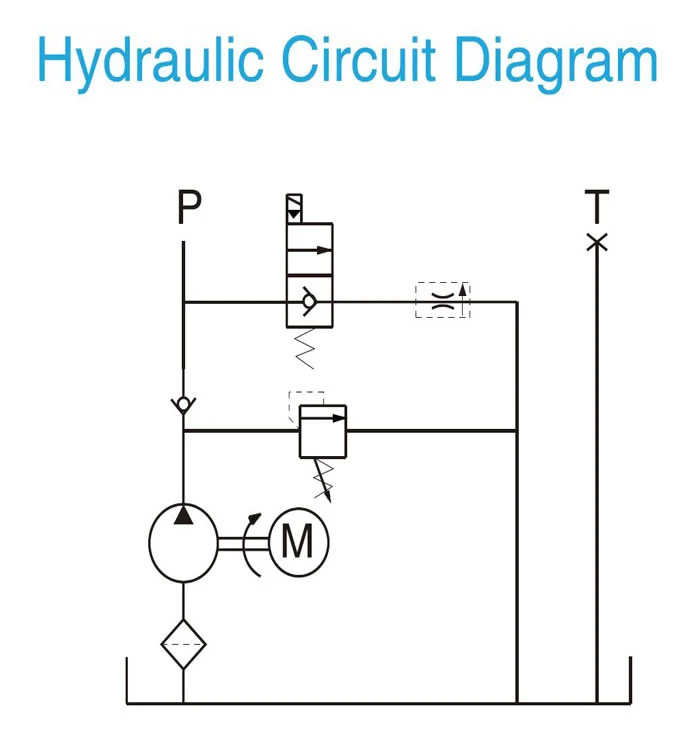

Drawing
Precautions
- Due to various types of hydraulic system failure occur more than 80% of the problems are caused by hydraulic oil, so the correct use of hydraulic oil to ensure the system’s reliability is very important.The oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.The hydraulic oil should be filtered by a 10-30um filter before put into use.N46 hydraulic oil is recommended.
- Clean all the hydraulic parts concerned before mounting mini hydraulic power pack.Check the oil level in the tank after the initial running of small hydraulic power unit.
- Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.We are at your disposal to offer you the power unites with your favorite power,flow,pressure as well as the tank capacity.
- The electric hydraulic pump should be horizontal installation.
- The electric hydraulic pump is of s3 duty, i.e., 30 seconds on and 270 seconds off.
- To achieve thermal equilibrium of the electric motor, we have to assure that the ratio between interval time and operation time of mini hydraulic power pack is 1:9.
| Model |
Volt engine |
Motor Power |
Rated Speed |
Displacement |
System Pressure |
Tank Capacity |
L(mm) |
| HPP 2F1.23.5D1203H |
12 volt DC |
1.5KW |
2500RPM |
1.2mL/r |
20MPa |
3.5L |
411 |
| HPP 2F1.65D1203H |
1.6mL/r |
5L |
461 |
| HPP 2F2.15D1203H |
2.1mL/r |
5L |
461 |
| HPP 2F2.16D2404H |
24 volt DC |
2KW |
2.1mL/r |
6L |
511 |
| HPP 2F2.58D2404H |
2.5mL/r |
8L |
581 |
| HPP 2F2.78D2404H |
2.7mL/r |
8L |
581 |
