Electric Scissor Lift Pump

  • Reservoir Capacity: Steel 3.96 to 6.6Gal
  • Motor: 380V AC 2.2KW
  • Flow: 1.58 to 2.03 GPM
  • Valve: 24VDC Cartridge valve
  • System Pressure: 3335/3625PSI
  • Oil Port: G1/4 or M14 x1.5 P1/P2/P3
  • Manufacturer Warranty: 1 year Limited Warranty


Description

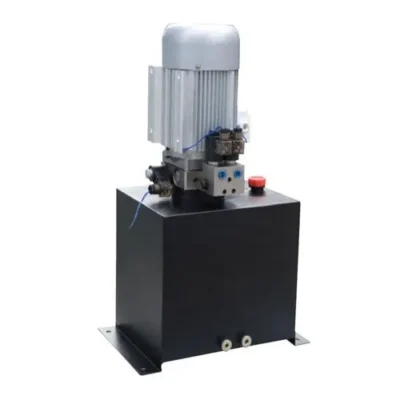

scissor lift ac power unit

Engineered for reliability, this compact power unit is the ideal scissor lift pump solution for industrial lifting platforms. Driven by a robust 2.2KW (380V AC) motor and a precision 24V DC cartridge valve, it delivers a high-pressure output of 3335–3625 PSI with a flow rate of 1.58–2.03 GPM.

Key Features

scissor lifts

  • Efficient Operation: Optimized for “power up/gravity down” cycles, utilizing the machine’s weight for smooth, energy-efficient lowering.
  • Precision Control: Lowering is managed via a solenoid valve, with an integrated throttle valve for precise speed adjustment.
  • Durable Build: Features a heavy-duty steel reservoir (3.96–6.6 gal capacity) and versatile G1/4 or M14x1.5 oil ports.
  • Customizable Options: Manual override cartridge valves and CSA/UL-certified AC motors are available upon request to meet specific safety and regional standards.

Drawing

Standard hydraulic circuit diagram shown below. We provide professional customization for oil port threads, manifold blocks, and mounting brackets to meet your specific engineering requirements.



Precautions

  1. Hydraulic Oil: Use N46 oil (22-46mm²/s) filtered via 10-30μm. Proper oil prevents 80% of scissor lift pump failures.

  2. Mounting: Clean all parts before assembly. The pump must be installed horizontally.

  3. Startup: Check the tank oil level immediately after the first operation.

  4. Maintenance: Change oil after the first 100 hours, then every 3000 hours.

  5. Duty Cycle: S3 rating (non-continuous). Maintain a 1:9 ratio (e.g., 30s on, 270s off) to avoid overheating.

  6. Safety: Mechanical locks are mandatory on both platforms when using this scissor lift pump.

  7. Customization: We offer tailored power, flow, pressure, and reservoir options.

Model Volt engine Motor Power Rated Speed Displacement Pressure Tank Valve Volt Dimension(mm)
L1 L2 L3 L4 L5 L6
HPP-2F2.115A380424V 380 volt AC 2.2kW 2850RPM 2.1mL/r 23MPa 15L 24 volt DC 516 240 260 340 180 320
HPP-2F2.120A380424V 20L 586 310 260 340 180 320
HPP-2F2.125A220424V 220 volt AC 25L 586 310 290 360 210 340
HPP-2G2.515A220424V 3KW 2.5mL/r 25MPa 15L 516 240 260 340 180 320
HPP-2G2.520A380524V 380 volt AC 20L 586 310 260 340 180 320
HPP-2F2.715A380524V 2.7mL/r 23MPa 15L 586 310 290 360 210 340

Need technical details or pricing? Please Contact Us for an immediate response and expert guidance on your project.
