Description

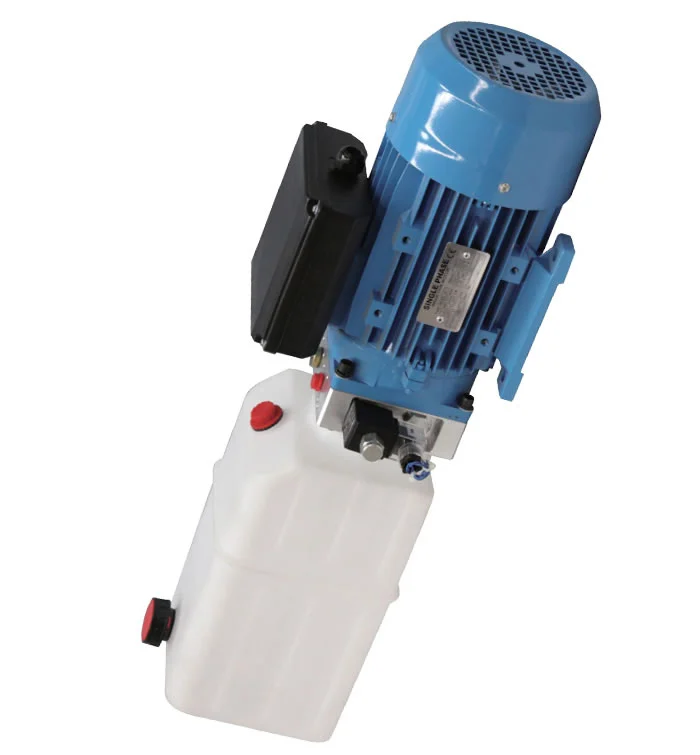

This hydraulic power pack is used scissor lift Table. It is equipped with a 220V/AC1.5KW hydraulic motor. The valve is cartridge valve and the oil reservoir is steel or plastic with the capacity of 1.32 to 3.17 gal. The system pressure is 2320 to 2900PSI and the flow is 0.77 to 2.43 GPM. The oil port is G1/2 or M20x1.5.
Scissor lift table power unit has been widely used in the industry of logistic devices such as Electric lift table, Scissor lift Table and Pallet Lift Table. The lowering movement is controlled by cartridge solenoid valve or cartridge manual valve and its speed is controlled by the adjustable throttle valve, which will protect the scissor lift table effectively. The manual override function is available on request.
60HZ motors with CSA or UL certification are available upon request.

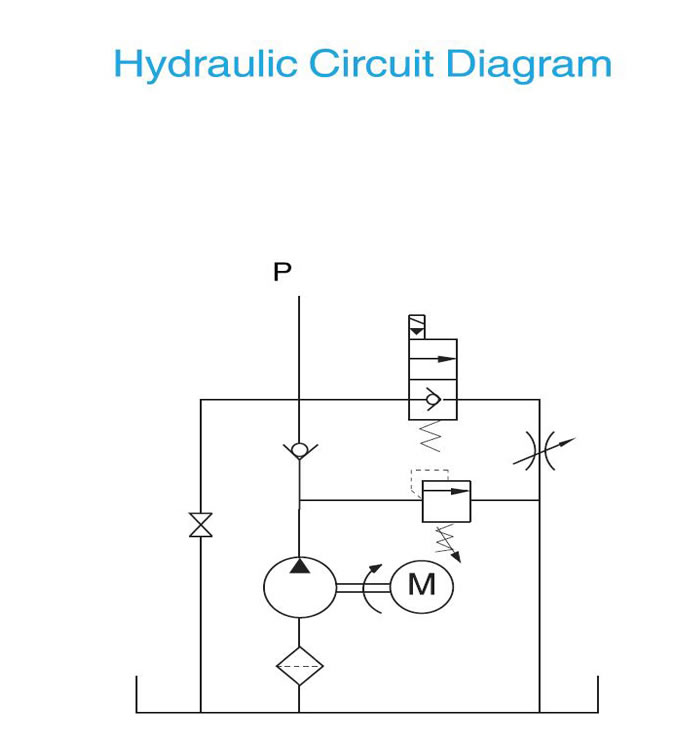

Drawing
Precautions
- Due to various types of hydraulic system failure occur more than 80% of the problems are caused by hydraulic oil, so the correct use of hydraulic oil to ensure the system’s reliability is very important.The oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.The hydraulic oil should be filtered by a 10-30um filter before put into use.N46 hydraulic oil is recommended.
- Clean all the hydraulic parts concerned before mounting mini hydraulic power pack.Check the oil level in the tank after the initial running of small hydraulic power unit.
- Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.We are at your disposal to offer you the power unites with your favorite power,flow,pressure as well as the tank capacity.
- The electric hydraulic pump is of s3 duty, which can be only worked intermittently,ie., 1 minute on and 9 minutes off.
- The electric hydraulic pump should be horizontal installation.
- To achieve thermal equilibrium of the electric motor, we have to assure that the ratio between interval time and operation time of mini hydraulic power pack is 1:9.
| Model |
Volt engine |
Motor Power |
Rated Speed |
Displacement |
System Pressure |
Tank Capacity |
L(mm) |
| HPP-2F2.15A2203H |
220 volt AC |
1.5KW |
1400RPM |
2.1mL/r |
20MPa |
5L |
645 |
| Hpp-2E2.16A2203H |
2.7mL/r |
20MPa |
6L |
690 |
| Hpp-2E3.28A2203H |
3.2mL/r |
16MPa |
8L |
795 |
| HPP 2F2.18A3804H |
380V |
2.2kW |
2880RPM |
2.1mL/r |
20MPa |
8L |
| HPP 2F2.710A3804H |
2.7mL/r |
20MPa |
10L |
885 |
| HPP-2E3.212A3804H |
3.2mL/r |
16MPa |
12L |
905 |
