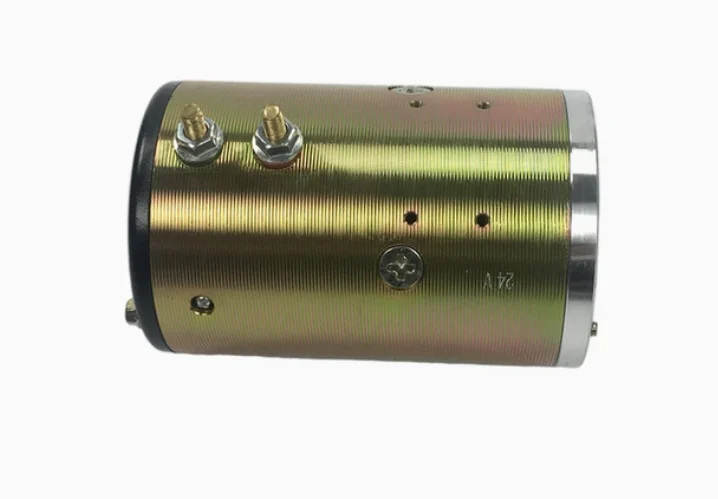

A DC hydraulic motor is a direct current electric motor designed to drive the hydraulic pump inside a hydraulic power unit. As a specialized 12 volt electric motor for hydraulic pump setup, it provides the essential mechanical force for fluid power systems through the following features:
- 1
Power Conversion: It converts low voltage DC power (typically 12V, 24V, or 48V) from a battery or vehicle electrical system into mechanical rotation.
- 2
Prime Mover: It serves as the primary driver for compact, battery powered hydraulic systems.
- 3
Mobile Flexibility: This 12 volt dc hydraulic pump motor is ideal for applications where AC power is unavailable or where engine independent, mobile hydraulic operation is required.
Role in a Hydraulic Power Unit
In a hydraulic power unit, the 12 volt hydraulic pump motor acts as the power source that spins the hydraulic pump. As the motor rotates, it drives the pump shaft to generate pressurized hydraulic fluid, which then powers cylinders, motors, or other actuators to perform lifting, pushing, tilting, and rotating tasks. This compact DC driven configuration turns a small battery powered system into a fully functional hydraulic power pack.
Key Advantages of 12 Volt DC Hydraulic Pump Motor
- 1
Battery compatible operation: Designed for 12V/24V DC systems, they can be powered directly from vehicle batteries or portable DC sources.
- 2
Compact & integrated design: Engineered specifically for hydraulic power units, they fit easily onto or into the pack, minimizing footprint and simplifying installation.
- 3
High starting torque: Deliver strong starting torque for reliable pump startup, even under high system pressure.
- 4
Optimized for intermittent duty: Suitable for S2/S3 duty cycles with frequent on off cycles and short duration operation.
- 5
Low maintenance & simple control: Require minimal maintenance and can be controlled via basic switches, relays, or compact electronic modules.
Why Choose DC Hydraulic Motors for Power Units?
12 volt hydraulic pump motor are the preferred choice for compact, mobile hydraulic power units where engine power, noise, and emissions are not acceptable. They offer a quiet, clean, and flexible solution that can be powered directly from a vehicle battery or portable DC source, enabling hydraulic operation in confined spaces, remote sites, and off road environments. For applications that demand engine independent, battery powered hydraulic power,12 volt electric motor for hydraulic pump are the heart of modern, compact hydraulic power packs.
