This article explores compatible replacement options for Sun hydraulics check valve and HydraForce CV08 20 in hydraulic manifold systems. We provide a detailed overview of the technical specifications for these valves, explain how to verify compatibility, and discuss the key parameters to check before replacing them with alternatives. Whether you’re looking for a cost-effective solution or ensuring seamless system integration, this guide will help you choose the right replacement.
HydraForce CV08-20 Technical Overview

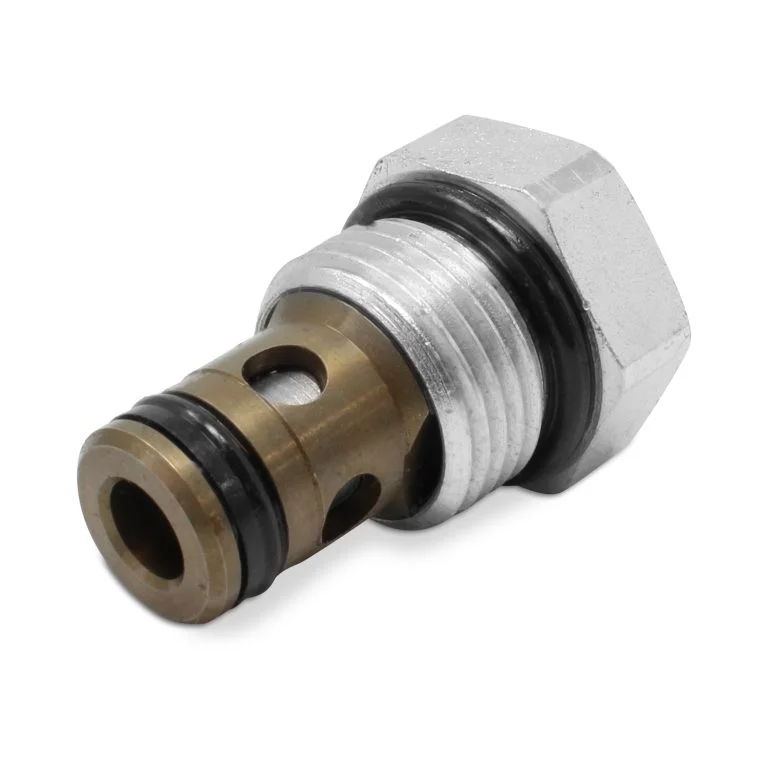

The HydraForce CV08 20 is a screw-in, cartridge-style hydraulic check valve used as a blocking or load-holding device in manifold systems. It allows fluid to flow in one direction while blocking flow in the reverse direction. The valve uses a spring-biased, fully guided poppet design, which opens when pressure is applied at port 1, allowing fluid to pass to port 2.
Description
The CV08-20 is a screw-in, cartridge-style hydraulic check valve for use as a blocking or load-holding device.
| Model | CV08-20 |
|---|---|
| Type | Cartridge Check Valve |
| Cavity | VC08-2 |
| Mounting Thread | 3/4-16 UNF |
| Rated Flow | 30 L/min (8 US gpm) |
| Operating Pressure | 241 bar (3500 psi) |
| Proof Pressure | 350 bar (5075 psi) |
| Burst Pressure | 1034 bar (15000 psi) |
| Internal Leakage | ≤5 drops/min at 241 bar |
| Operating Temp. | -40 to 120°C (with proper seals) |
| Weight | Approx. 0.05 kg |
| Applications | 1.Agricultural machinery 2.Construction equipment 3.Industrial hydraulic systems 4.Mobile hydraulic equipment 5.Manifold block systems |
Operation
The cartridge valve allows flow from port 1 to 2, while normally blocking flow in the opposite direction. The cartridge valve has a fully guided check which is spring biased closed until sufficient pressure is applied at port 1 to open to port 2.
Features
-
Hardened seat for long life and low leakage.
-
Optional bias springs for back-pressure application flexibility.
-
Fully guided check assembly.
-
Compact size.
-
Fast closing and seating.
Sun Check Valve Overview
Sun Hydraulics offers a variety of check valves designed for use in hydraulic systems. These valves are also cartridge-style and are typically used for flow control, pressure relief, and load-holding applications. The valves are designed to fit specific cavity sizes and may be used in a variety of systems requiring flow direction control.
Key Parameters to Verify Before Replacement
Before replacing a Sun hydraulics check valve or HydraForce CV08 20, it is crucial to verify the following parameters to ensure a proper replacement:
-
Cavity Size: Ensure the valve fits the appropriate cavity. For CV08-20, it’s typically a Size 08 cavity.
-
Pressure Rating: Check if the rated pressure of the replacement valve matches or exceeds the original valve’s pressure rating.
-
Cracking Pressure: Make sure the cracking pressure is suitable for your system’s requirements.
-
Flow Capacity: Ensure the replacement valve supports the same or higher flow rates as needed for your hydraulic system.
-
Seal Compatibility: Verify the seals are compatible with the fluids and temperature ranges used in your system.
Our Compatible Check Valves
As a manufacturer and supplier, Jade Crown provides high-quality, reliable, and cost-effective check valves that are designed to fit standard cavities and meet the required performance specifications. We support bulk and wholesale procurement, offering excellent pricing advantages while maintaining stable quality across large orders.
Our valves are tested to ensure compatibility and reliability, making them a trusted solution for engineers and businesses looking for efficient replacements.
Successful Case Studies
We have successfully supplied HydraForce CV08-20 replacements and Sun hydraulics check valve to numerous industrial companies worldwide. One of our clients, a leading agricultural equipment manufacturer, switched to our equivalent check valves, resulting in reduced maintenance costs and improved system efficiency.
Another example includes a construction equipment company that implemented our check valves in their hydraulic circuits, improving reliability and reducing downtime.
Why Choose Jade Crown for Your Replacement Needs
At Jade Crown, we are committed to providing high-quality hydraulic solutions, including check valves that meet industry standards. Our products offer:
-
Stable Quality: We maintain consistent product quality across all orders, whether for bulk or wholesale purchasing.
-
Competitive Pricing: Our products are priced competitively, offering savings without compromising quality.
-
Efficient Supply Chain: We have a reliable supply chain to ensure timely delivery for your projects.
-
Customer Support: Our team is always ready to assist you with technical questions, orders, and support for your hydraulic system needs.
Contact Us for More Information
If you require further assistance or would like to place a bulk order, please contact us. Our engineering team is available to help with technical questions and provide the best solutions for your needs.
Disclaimer
Sun Hydraulics and HydraForce are registered trademarks of their respective owners. We are not affiliated with these companies. Product names are used for identification and compatibility reference purposes only.
