When selecting a 12 volt hydraulic pump for dump trailer use, match the power unit to the cylinder type, required pressure, lifting speed and lowering method. Most standard dump trailers use a 12V DC hydraulic power unit with either a single-acting or double-acting circuit.
How Do You Choose a 12 Volt Hydraulic Pump for a Dump Trailer?
Choosing the right 12 volt hydraulic pump for dump trailer applications mainly depends on four factors:
- 1
Hydraulic circuit: Confirm whether the cylinder is single acting or double acting.
- 2
Pressure: The pump must provide enough pressure to lift the expected load.
- 3
Flow rate: Flow determines how quickly the trailer bed rises.
- 4
Reservoir capacity: The tank must hold enough oil for the full cylinder stroke.
When the cylinder size or required configuration is uncertain, our team can help you choose a 12 volt hydraulic pump for dump trailer applications based on the existing power unit or project requirements.

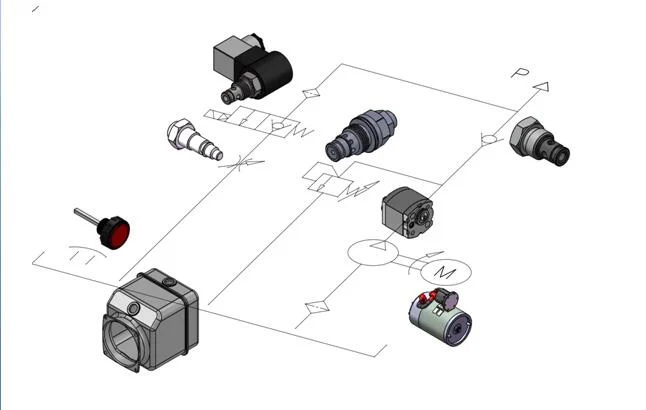

Do You Need a Single-Acting or Double-Acting Pump?
A single-acting power unit uses hydraulic pressure to raise the trailer bed and gravity to lower it. This is the most common arrangement for standard dump trailers.
A double-acting power unit uses hydraulic pressure for both lifting and lowering. It is suitable when powered retraction or more controlled movement is required.
| Feature | Single Acting | Double Acting |
|---|---|---|
| Raising | Hydraulic power | Hydraulic power |
| Lowering | Gravity | Hydraulic power |
| Hydraulic lines | Usually one | Usually two |
| Typical use | Standard dump trailers | Powered or controlled lowering |
The hydraulic circuit must match the cylinder. A single-acting and double-acting unit cannot be exchanged simply because both operate at 12V.
What Pressure and Flow Rate Does a Dump Trailer Need?
Pressure determines lifting capacity, while flow rate determines cylinder speed. For many standard systems, 2500–3200 PSI and approximately 1–2 GPM can be used as a reference, but the final specification depends on the cylinder size, trailer geometry and required lifting time.
A properly selected 12 volt hydraulic pump for dump trailer use should provide sufficient lifting force without causing excessively fast movement or overloading the hydraulic components.

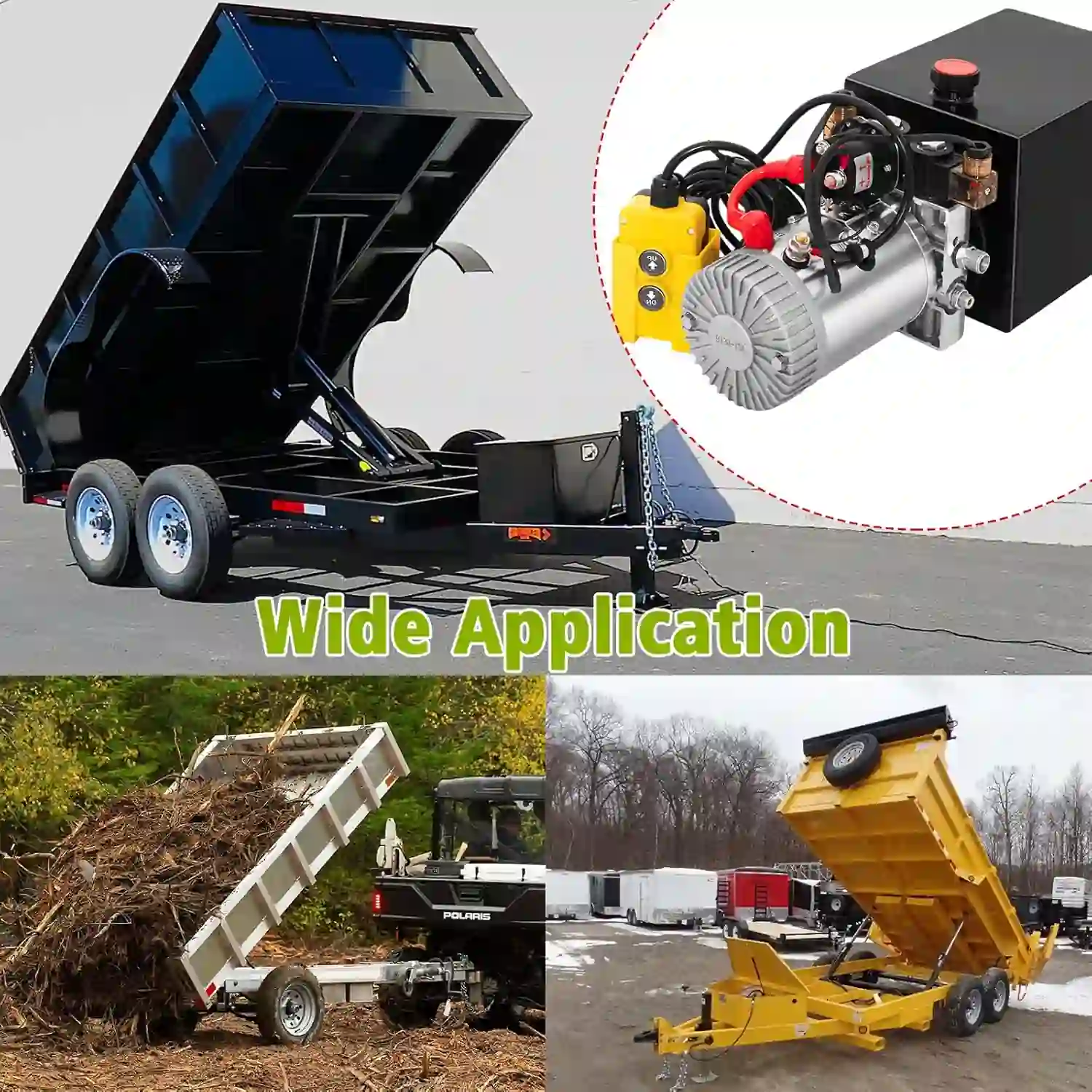

What Applications Use a 12V Hydraulic Power Unit?
A 12 volt dump trailer hydraulic pump, especially a double-acting model, can be used in:
- 1
Dump trailers from brands such as Big Tex, PJ, MAXX-D, Griffin, Lamar and Belmont, subject to specification confirmation;
- 2
Utility lifts;
- 3
Scissor hoists;
How Should a 12V Hydraulic Pump for Dump Truck Be Maintained and Repaired?
Routine maintenance of a 12 volt hydraulic pump for dump truck mainly includes keeping the hydraulic oil clean, checking the oil level, and inspecting hoses, fittings, and electrical connections.
For more detailed maintenance requirements, see our hydraulic power unit maintenance guide. If the unit runs slowly, makes unusual noise or cannot lift normally, follow our hydraulic power unit repair and troubleshooting guide to identify the cause.
Why Choose Jade Crown as Your Hydraulic Power Unit Manufacturer?
Jade Crown Hydraulic is a professional hydraulic power unit manufacturer supplying products for dump trailers, dump trucks and other mobile hydraulic equipment.
Our advantages include:
- 1
Single-acting and double-acting options;
- 2OEM and customized production;
- 3Competitive factory pricing;
- 4Efficient production and delivery;
- 5100% functional testing before shipment.
Each completed unit is tested for motor operation, hydraulic output, valve response and external leakage. For replacement or bulk orders, contact our professional hydraulic power unit team for product confirmation and quotation.
Frequently Asked Questions
What Size Hydraulic Pump Do I Need for a Dump Trailer?
Most standard dump trailers use a 12V DC pump rated at approximately 2500–3200 PSI, with a flow rate of 1–2 GPM and a 4–8 quart reservoir. The exact size depends on the cylinder and load.
What Hydraulic Fluid Is Recommended for a Dump Trailer?
ISO VG 32 or ISO VG 46 hydraulic oil is commonly used in moderate climates. ISO VG 22 may be more suitable in colder conditions. Follow the power unit manufacturer’s fluid recommendation.
What Is the Hydraulic System for a Dump Trailer?
A dump trailer hydraulic system normally includes a 12V power unit, hydraulic cylinder, reservoir, hoses, battery and controller.
What Happens If Your Hydraulic Pump Is Too Big?
An oversized pump may move the cylinder too quickly, draw more current and generate additional heat. The pump should match the cylinder volume and required lifting speed.
What Is the Lead Time and Warranty?
Lead time depends on the configuration and order quantity. Jade Crown provides a one-year warranty and after-sales support.
