This guide explains how a 12V DC hydraulic pump works, where it is used, and how to choose the right model for mobile hydraulic equipment. It covers working principles, key specifications, single-acting and double-acting types, reservoir options, customization, applications, and price factors for buyers and equipment manufacturers.
What Is a 12V DC Hydraulic Pump?
A 12V DC hydraulic pump is a compact system that converts 12-volt battery power into high-pressure hydraulic energy. It is commonly used in mobile and marine equipment where standard AC power is not available.

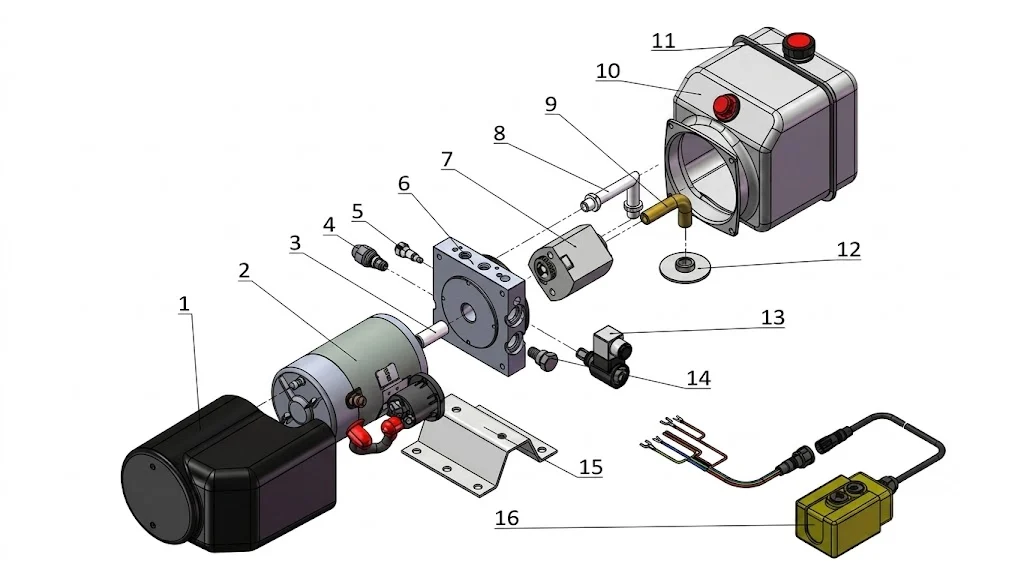

This type of pump usually includes a DC motor, gear pump, reservoir, manifold block, valves, and controls. It provides hydraulic power for lifting, lowering, pushing, pulling, and other controlled movements.
How Does a 12V DC Hydraulic Pump Work?
A 12V DC hydraulic pump works by using sealed hydraulic fluid to transfer battery power into hydraulic pressure and mechanical movement. The basic process is simple:
- 1The 12V DC motor is powered by a battery.
- 2
The motor drives the gear pump.
- 3
The gear pump draws hydraulic oil from the reservoir.
- 4
Pressurized oil flows into the manifold block.
- 5
When the oil pressure reaches the valve opening pressure, hydraulic fluid flows to the cylinder and moves it.
- 6
When the cylinder is fully extended or system pressure becomes too high, the relief valve opens to protect the system.
- 7
Electrical power is finally converted into hydraulic pressure and linear motion.
What Are the Key Specifications of a 12V DC Hydraulic Pump?
The following hydraulic schematic is for reference only. The actual hydraulic circuit should be confirmed according to the specific product configuration and application requirements.
Key specifications include pressure, flow rate, current draw, duty cycle, and reservoir size. These factors affect lifting force, operating speed, power demand, and system reliability.
- Pressure: Usually ranges from 2,100 to 3,200 PSI maximum relief setting.
- Flow Rate: Common output is about 0.4 to 2.0 GPM, depending on pump capacity.
- Current Draw: May draw around 70–80 amps at low load and over 150 amps under heavy load, so proper wiring and battery capacity are important.
- Duty Cycle: Most standard brushed DC models are designed for intermittent use, such as short operation followed by cooling time.
- Reservoir Size: The reservoir should match the cylinder volume, stroke length, and working cycle.
Customization Options: Jade Crown Hydraulic supports custom 12v hydraulic power unit double acting or 12v hydraulic pump single acting solutions, including motor, pump, reservoir, valve, mounting, and material options. Contact us for custom hydraulic power unit solutions.
Difference Between Single-Acting and Double-Acting
12V hydraulic pumps can be designed as single-acting or double-acting, depending on how the cylinder needs to move. They can also be matched with plastic or steel tanks, with common reservoir volumes including 4, 6, 8, 10, and 12 quarts.
The table below shows the main differences between a 12V hydraulic pump single acting system and a 12V hydraulic power unit double acting system.
| Feature | Single-Acting Pump | Double-Acting Pump |
|---|---|---|
| Hydraulic Flow | Pushes fluid in one direction only. | Pushes fluid in both directions. |
| Return Mechanism | Relies on gravity, load weight, or mechanical spring to return. | Uses hydraulic pressure to actively extend and retract the cylinder. |
| Common Uses | Dump trailers, car lifts, scissor lifts, and simple lifting systems. | Snow plows, heavy winches, lift gates, and machinery requiring controlled movement in both directions. |
Where Are 12V DC Hydraulic Pumps Commonly Used?
12V DC hydraulic pumps are commonly used in mobile equipment that needs compact hydraulic power from a battery source. As a professional hydraulic power unit manufacturer, Jade Crown Hydraulic supplies power units with hydraulic reservoir tank for stable oil storage and reliable operation.
A 12 volt hydraulic pump with reservoir is suitable for many mobile hydraulic applications, including:
Jade Crown Hydraulic also provides compact power units for various dump trailers, including Big Tex, Griffin, MAXX-D, PJ, Lamar, Belmont, and other trailer systems.
Why Choose Jade Crown Hydraulic?
Jade Crown Hydraulic is a professional hydraulic power unit manufacturer, supplying reliable 12V DC hydraulic pumps for mobile equipment and industrial applications. We offer competitive 12 volt DC hydraulic power pack price while maintaining product quality and stable delivery.
Our advantages include:
- Consistent product quality
- Stable production and delivery
- Competitive factory pricing
- Custom hydraulic power unit support
- Solutions for mobile and industrial applications
