12V Double Acting Hydraulic Pump

Description

Our 12 volt DC hydraulic pump double acting is designed to provide reliable bi-directional hydraulic power for lifting and lowering operations. Equipped with a high-torque 2.2KW DC motor, it delivers stable pressure output and efficient performance for demanding hydraulic systems.

With its compact structure and double-acting function, this power unit is suitable for dump trailers, car lifts, lift gates, and various industrial machinery. It helps ensure smooth operation, controlled movement, and dependable performance in daily use.

Why Choose Our 12V Double Acting Hydraulic Pump?

• Total Control (Double Acting): As a premium 12v double acting hydraulic pump, it powers both the extension and retraction of your cylinders. No more waiting for gravity—get fast, predictable movements every time.
• High-Pressure Efficiency: Optimized for performance, this 12v hydraulic pump double acting supports a system pressure of 1450-3190 PSI and a flow rate up to 3.11 GPM, ensuring smooth operation under maximum load.
• Built for Durability: Choose between a heavy-duty steel or a high-impact plastic reservoir (0.79 to 6.6 gal). Our tanks are engineered to withstand extreme temperatures and prevent leaks.
• Universal Compatibility: Featuring standard G1/4 or M14x1.5 ports and integrated cartridge valves, this 12 volt double acting hydraulic pump fits seamlessly into existing setups.

Engineered for Versatility

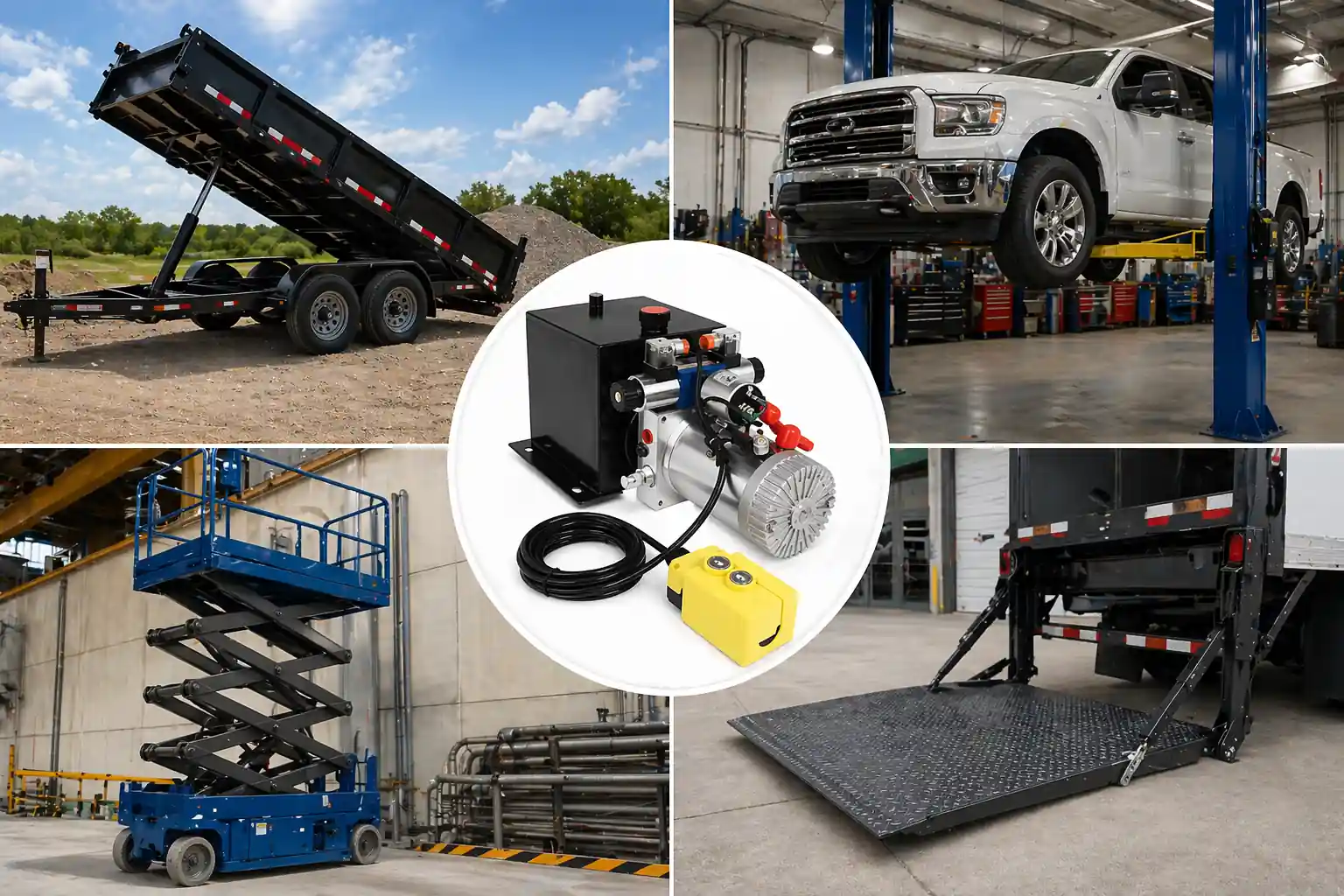

• Dump Trailers & Lift Gates: Precise control for dumping and lowering.
• Auto Repair: Reliable power for 2-post and 4-post car lifts.
• Material Handling: Scissor lifts, forklifts, and docking equipment.
• Outdoor Maintenance: Snow plows, log splitters, and garden machinery.

Drawing

Standard hydraulic circuit diagram shown below. We provide professional customization for oil port threads, manifold blocks, and mounting brackets to meet your specific engineering requirements.

Precautions

1. Proper hydraulic oil is essential for the reliable operation of a 12v double acting hydraulic pump. More than 80% of hydraulic system failures are related to hydraulic oil quality, contamination, or improper use.
2. The recommended oil viscosity is 22–46 mm²/s, in accordance with ISO 3448. Hydraulic oil should be filtered through a 10–30 μm filter before use. N46 hydraulic oil is recommended.
3. Before installing the 12v hydraulic pump double acting unit, clean all related hydraulic parts to prevent contamination inside the system.
4. After the initial operation, check the oil level in the tank. Change the oil after the first 100 operating hours, then replace it every 3000 operating hours.
5. The 12 volt double acting hydraulic pump should be installed horizontally.
6. The electric hydraulic pump is designed for S3 duty: 30 seconds on and 270 seconds off.
7. To maintain motor temperature balance, the interval time and operation time ratio should be 1:9.
8. When using the 12 volt DC hydraulic pump double acting system on lifting platforms, mechanical locks are required on both platforms.
9. Custom power units are available with your required power, flow, pressure, and tank capacity.

Standard and custom models are available in 12V DC, 24V DC, 220V AC, and 380V AC options. Please contact us to confirm the right configuration for your application.
