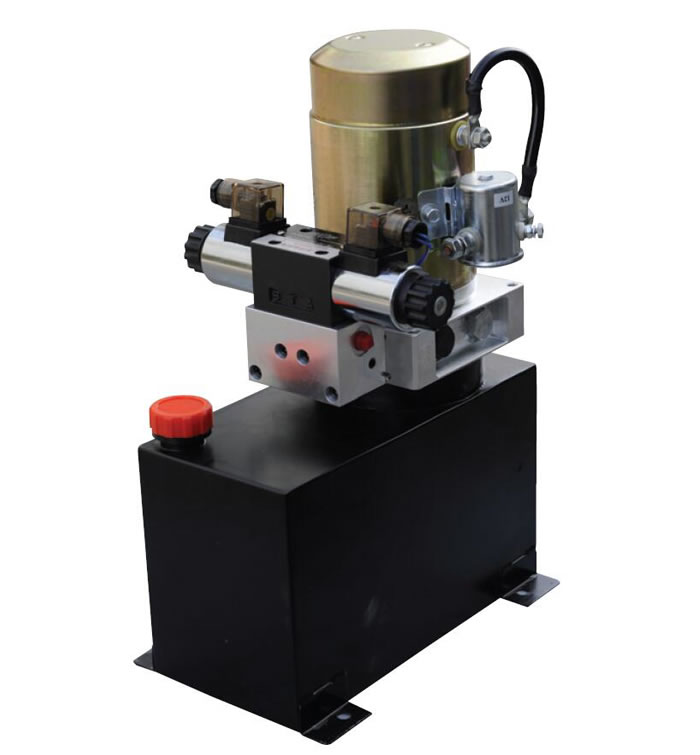

Description
Our premium double acting hydraulic power unit is the ultimate solution for applications requiring precision and heavy-duty strength. Engineered with a robust 24V DC 2KW motor, this unit provides the “Power Up & Power Down” control necessary for smooth, predictable, and safe operations.
Key Performance Specifications
- Dual Action Precision: Equipped with a high-efficiency dual action hydraulic pump and cartridge valves, perfect for driving a group of double-acting cylinders.
- Durable Construction: Features a heavy-duty steel reservoir (available from 0.92 to 3.70 gal) designed to withstand harsh outdoor environments.
- Reliable Output: Delivers a consistent flow of 0.99 to 1.78 GPM with a maximum system pressure of 2900 PSI.
- Universal Compatibility: Standard G1/4 or M14 x 1.5 A/B oil ports ensure easy integration with your existing hydraulic systems.

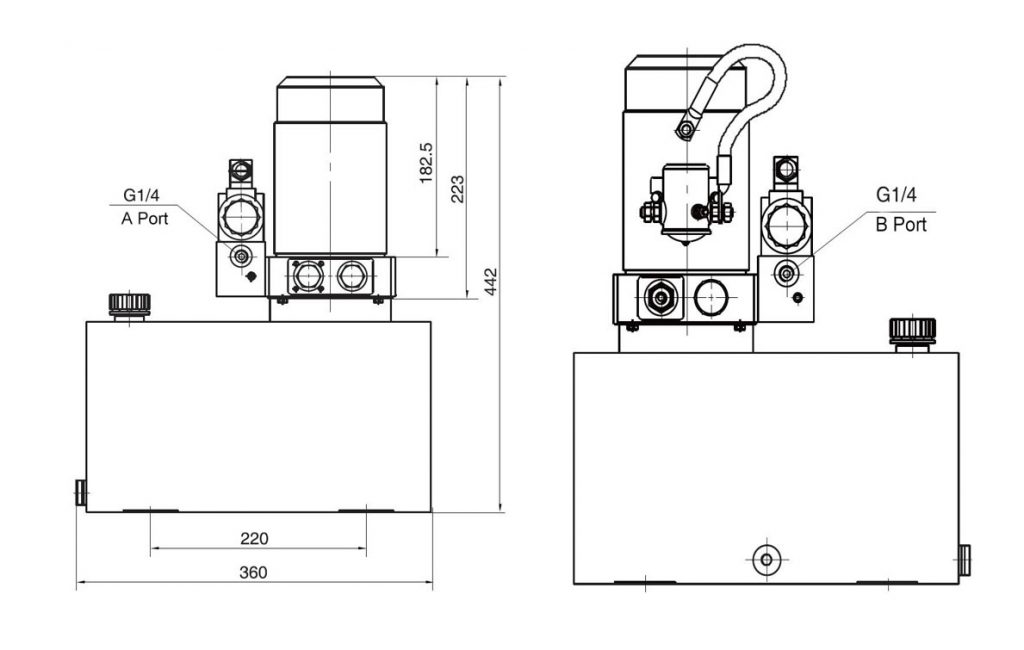

Drawing

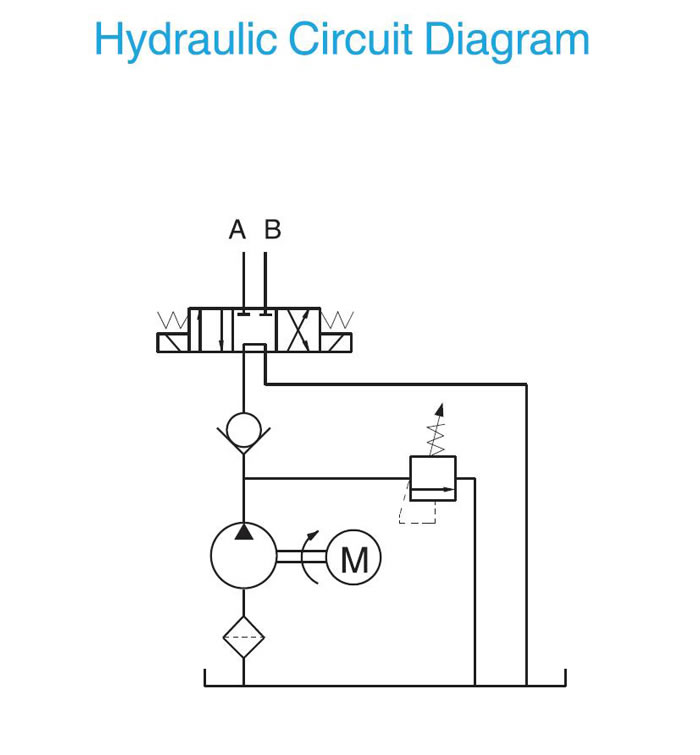

Standard hydraulic circuit diagram shown below. We provide professional customization for oil port threads, manifold blocks, and mounting brackets to meet your specific engineering requirements.
Precautions
- Over 80% of hydraulic system failures are caused by hydraulic oil issues, so using the correct oil is essential for system reliability.
- Use N46 hydraulic oil with a viscosity of 22-46mm²/s and filter it with a 10-30μm filter before use.
- Clean all hydraulic parts before mounting the double acting hydraulic power unit and check the oil level after the first operation.
- Change the oil after the first 100 hours of operation, then every 3000 hours to maintain the system’s efficiency.
- We provide customizable dual action hydraulic pump systems with your preferred power, flow, pressure, and tank capacity.
- The electric hydraulic pump operates with an S3 duty cycle: 30 seconds on, 270 seconds off.
- Install the electric hydraulic pump horizontally to ensure optimal performance.
- To achieve thermal equilibrium, maintain a 1:9 operation-to-rest ratio for the double acting hydraulic power unit.
| Model |
Volt engine |
Power rating |
Rated Speed |
Displacement |
System Pressure |
Tank Capacity |
| HPP 4F1.23.5D1203H |
12 volt DC |
1.5KW |
2500RPM |
1.2mL/r |
20MPa |
3.5L |
| HPP 4F1.65D1203H |
1.6mL/r |
5L |
| HPP 4F2.76D2404H |
24 volt DC |
2KW |
2.7mL/r |
6L |
| HPP 4F2.514D2404H |
2.5mL/r |
14L |
Need technical details or pricing? Please Contact Us for an immediate response and expert guidance on your project.
Why Choose Our Dual Action Hydraulic Pump?
- Built to Last: Every unit undergoes rigorous pressure testing. The “neutral open” circuit design and weather-resistant motor housing ensure long-term reliability in high-duty cycle applications.

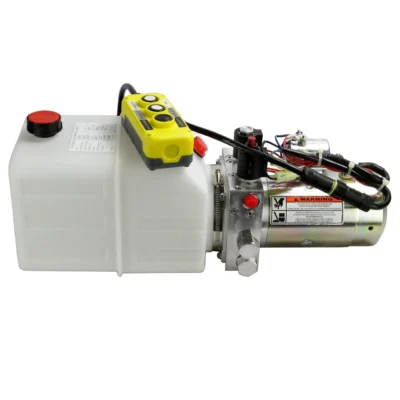

- Plug-and-Play Setup: Designed for user convenience, it supports quick horizontal or vertical mounting. (Optional 15ft remote pendant available for effortless long-distance control).
- Versatile Applications: While optimized for tipper trailers, this unit is also the go-to choice for snow plows, forklift ramps, car haulers, and various industrial lift systems.
