Project Description

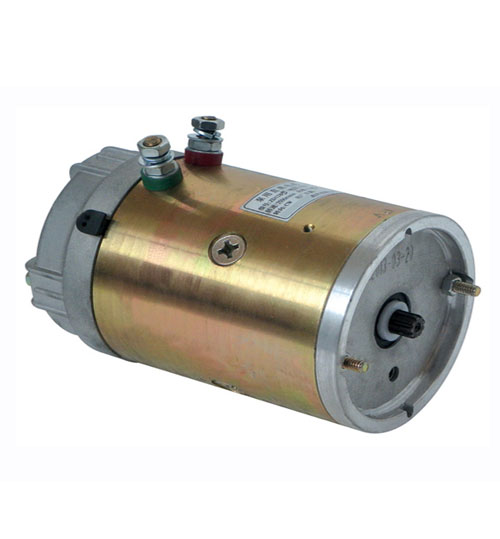

12V Motor ZD1205
| Item#: | ZD1205 |
| Place of Origin: | Zhejiang, China (Mainland) |
| Quality Certificate: | ISO9000, ISO/TS16949 |
| Delivery Time: | 7-15 working day |
| Guarantee Period: | 1 Years |
12v DC Motor Specification
| Moter Type | ZD1205 |
| Moter Volt | 12V |
| Power rating | 1.6KW |
| Motor Speed | 2500r/min |
| Motor rotation | CCW |
| Protection Grade | IP44 |
| Motor Weight | 7.5Kg |
12 Volt DC Motor commutator:
| Modulus | M | 1.25 |
| Teeth | Z | 9 |
| Pressure Angle | a | 37.5 |
| Sub round | d | 11.25 |
| Top round | Da | 12.4 |
| Root round | df | 9.5 |
| Sub-normal length | wk | 5.68 |
| Cross Teeth | K | 2 |
