General Description

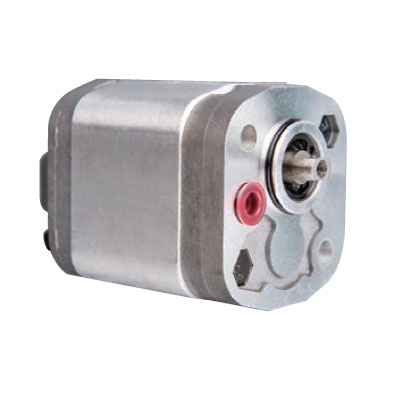

Small in displacement, the CB-E pump consists of a gear pair supported by two aluminum bearing blocks, a housing, front cover, and rear cover. The features of CB-E pump have small dimension, low weight, high mechanical and volumetric efficiency as well as low noise level. It has been widely used in small hydraulic systems of medium/high pressure for a majority of applications.

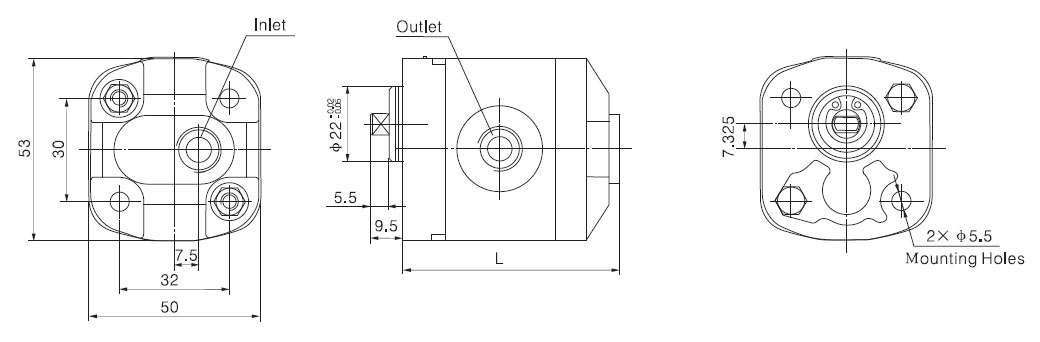

Notes: The CB-E gear pump has four inlet/outlet positions: rear in/front out, side in/front out, side in/side out, rear in/side out. Both CW and CCW direction pumps are available.

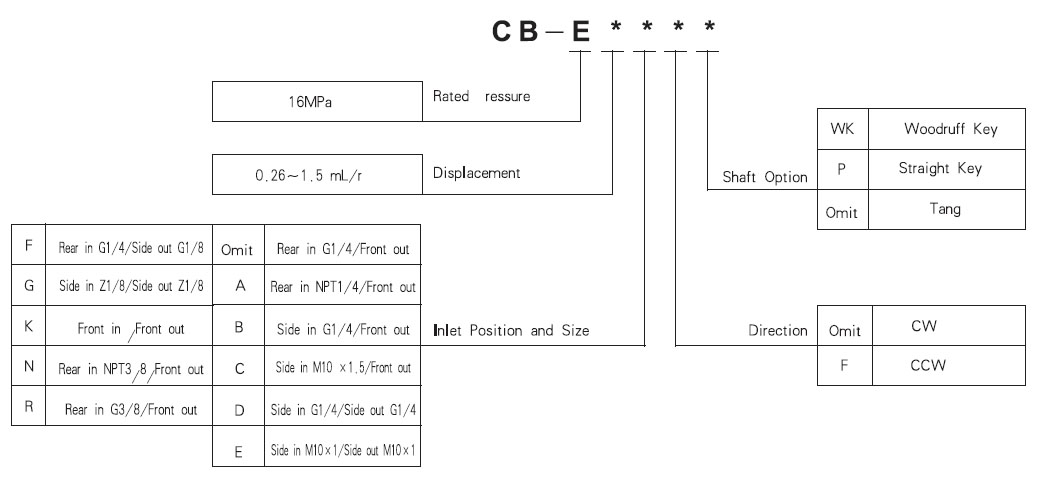

Order Code
Outline Dimension

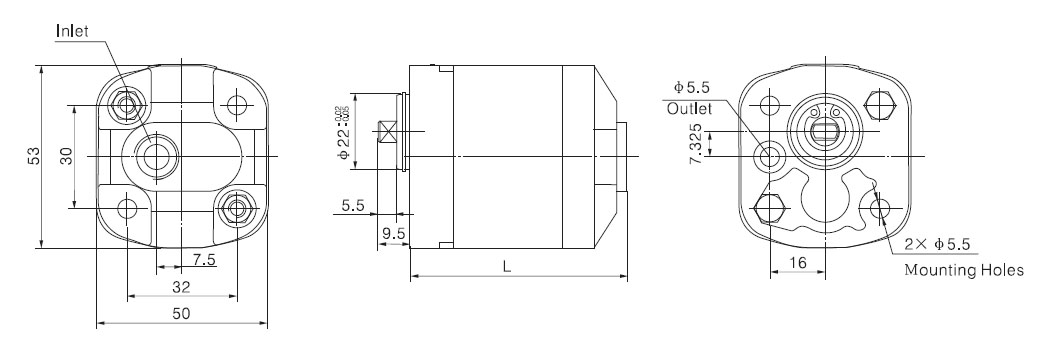

CB-E Gear Pumps (Rear in/Front out)

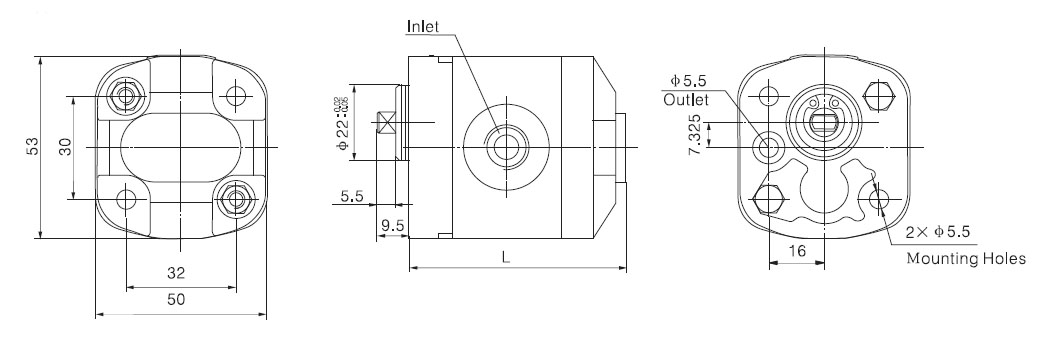

CB-E Gear Pumps (Side in/Front out)

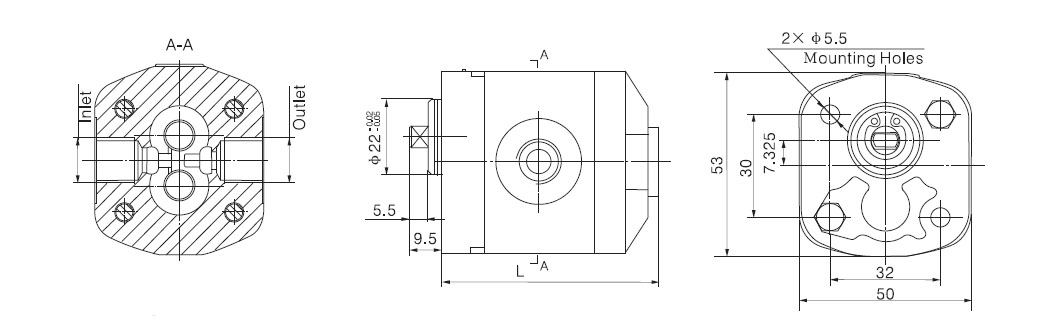

CB-E Gear Pumps (Side in/Side out)
CBK-F*CF Outline Dimension (Side in/side out)
CBK-F*DF Outline Dimension (Rear in/rear out)
Technical data
| Model |
Displacement |
Pressure (MPa) |
Speed (RPM) |
Dimension |
Efficiency |
|
mL/r (in³/r) |
P1 |
P2 |
P3 |
Speed |
L(mm) |
|
| CB-E0.26*** |
0.27 (0.0165) |
16 |
18 |
20 |
3000 |
61.2 |
0.82 |
| CB-E0.32*** |
0.33 (0.0201) |
61.7 |
| CB-E0.38*** |
0.39 (0.0238) |
62.2 |
| CB-E0.5*** |
0.49 (0.0299) |
63 |
0.85 |
| CB-E0.6*** |
0.61 (0.037) |
64 |
| CB-E0.63*** |
0.64 (0.039) |
64.2 |
| CB-E0.75*** |
0.76 (0.046) |
65.2 |
0.86 |
| CB-E0.88*** |
0.88 (0.0537) |
66.2 |
| CB-E1.00*** |
1.00 (0.061) |
67.2 |
| CB-E1.25*** |
1.25 (0.0763) |
69.2 |
| CB-E1.5*** |
1.54 (0.094) |
71.5 |
| CB-E1.9*** |
1.91 (0.1165) |
12 |
14 |
16 |
74.5 |
0.88 |
