Description
Designed for durability and efficiency, this dock leveler hydraulic pump system delivers reliable lifting power for heavy-duty loading docks. Its compact, oil-submerged motor design significantly reduces noise and ensures excellent heat dissipation, extending the unit’s service life even in high-frequency environments.
Specifications
- Motor: 380V, 0.75KW (60Hz CSA/UL certified motors available upon request)
- Control: 24V DC Normally Open Cartridge Solenoid Valve
- Flow Rate: 0.77 – 1.18 GPM (Gallons Per Minute)
- System Pressure: 2030 PSI
- Reservoir: 1.05 Gallon (4L) capacity, available in heavy-duty Steel or Plastic
- Oil Ports: Standard G1/4″ or M14 x 1.5
Drawing
Standard hydraulic circuit diagram shown below. We provide professional customization for oil port threads, manifold blocks, and mounting brackets to meet your specific engineering requirements.
Technical Highlights
- All-Weather Performance: Engineered to operate reliably in diverse climates; compatible with low-viscosity oils for cold storage environments.
- Enhanced Safety Suite: Features a built-in adjustable relief valve to prevent over-pressurization and a cartridge solenoid valve for instant emergency stops and float functionality.

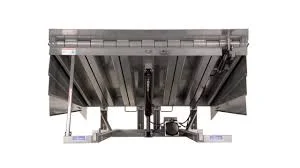

- Universal Compatibility: A versatile dock leveler hydraulic pump solution, compatible with most pit-style, edge-of-dock, and vertical leveling systems.
- Maintenance-Friendly: The modular layout and translucent reservoir make fluid inspections and component replacements quick and easy, minimizing dock downtime.
- Industrial Durability: The fully submerged motor-pump assembly protects internal components from wear and provides a whisper-quiet operation.
Precautions
-
Hydraulic Oil: 80% of failures are oil-related. Use N46 oil (22-46mm²/s) filtered through a 10-30μm filter to ensure dock leveler hydraulic pump reliability.
-
Preparation: Clean all components before mounting. Check the tank oil level immediately after the initial run of the power unit.
-
Maintenance: Perform the first oil change after 100 hours, then every 3000 hours subsequently.
-
Duty Cycle (S3): Designed for intermittent use (S3 duty). Maintain a 1:9 ratio (1 min ON / 9 mins OFF) to ensure motor thermal equilibrium.
-
Customization: We offer dock leveler hydraulic pump units with customizable power, flow, pressure, and reservoir capacities.
| Model |
Volt engine |
Solenoid Valve Volt |
Motor Power |
Rated Speed |
Displacement |
System Pressure |
Tank Capacity |
L(mm) |
| Hppy-81D3.24A380124H |
380 volt AC |
24 volt DC |
0.75KW |
1400RPM |
3.2ml/r |
14MPa |
4L |
408 |
| Hppy-81D2.14A380124H |
2.1ml/r |
Need technical details or pricing? Please Contact Us for an immediate response and expert guidance on your project.
