Project Description

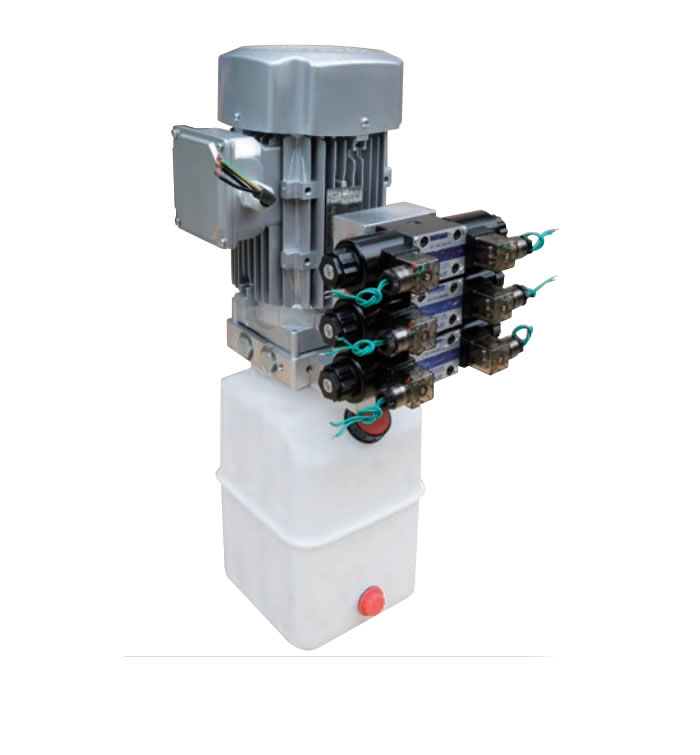

Power Unit For Hydraulic Tire Changer
- Reservoir Capacity: Steel or Plastic 1.32 to 2.11Gal
- Motor: 380V AC 1.5KW
- Flow: 0.79 to 1.17 GPM
- Valve: 12/24V DC Solenoid valve
- System Pressure: 2900PSI
- Oil Port: G3/8 P1/P2/P3
- Manufacturer Warranty: 1 year Limited Warranty
Description
Also belongs to AC Hydraulic power unit, Power unit for hydraulic tire changer can flow 0.79 to 1.17 gal per minute by the 380V/AC/1.5W motor and a 12/24V DC solenoid valve. The oil reservoir can hold about 1.32 to 2.11 gal oil and oil sort is G3/8 P1/P2/P3. Its system pressure is 2900PSI.
This power unit for hydraulic tire changer is designed exclusively for the tire changer, the solenoid valves in series connection control the extension and retracting of the double acting cylinders.

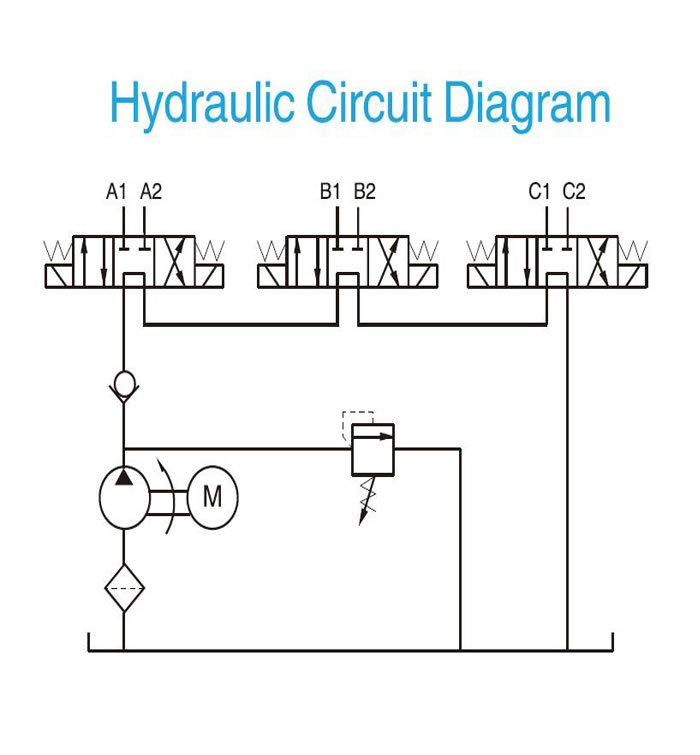

Drawing
Precautions
- The AC motor is of S3 duty cycle,which can only work intermittently and repeatedly,i.e.,1 minute on and 9 minutes off.
- Clean all the hydraulic components concerned before installation of the power unit.
- Viscosity of the oil should be 15～68 CST and the oil should be clean and free of impurities,N46 hydraulic oil is recommended.
- Check the oil level in the tank after the initial running of the power unit.
- Oil changing is required after the initial 100 operation hours,afterwards once every 3000 hours.
| Model | Volt engine | Solenoid Valve Volt | Motor Power | Rated Speed | Displacement | System Pressure | Tank Capacity | L(mm) |
|---|---|---|---|---|---|---|---|---|
| HPP-40F2.75A380324H | 380 volt AC | 24 volt DC | 1.5KW | 1430 / 1650RPM | 2.7ml/r | 20MPa | 5L | 633 |
| HPP-40F2.56A380324H | 2.5ml/r | 6L | 678 | |||||
| HPP-40F2.18A380312H | 12 volt DC | 2.1ml/r | 8L | 783 |
