The efficiency of a loading dock hinges on the reliability of its actuation system. At the core of this infrastructure lies the dock leveler power pack, a self-contained unit designed to provide consistent, high-pressure fluid power to ramp and lip cylinders. Our engineering focus centers on the dock leveler hydraulic pump, ensuring that every cycle is executed with precision, safety, and durability.

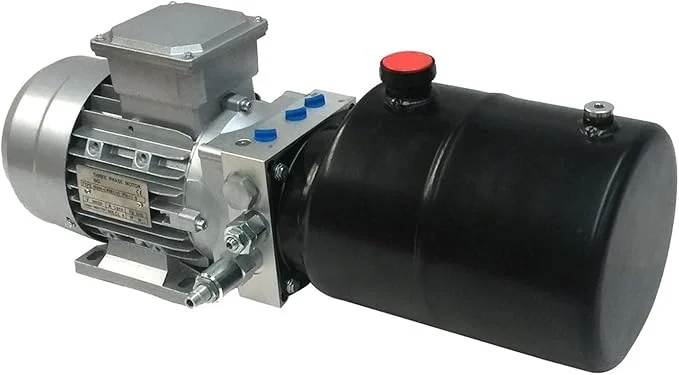

Industrial dock leveler hydraulic pump power unit with electric motor and black reservoir tank.

Hydraulic Operational Principle

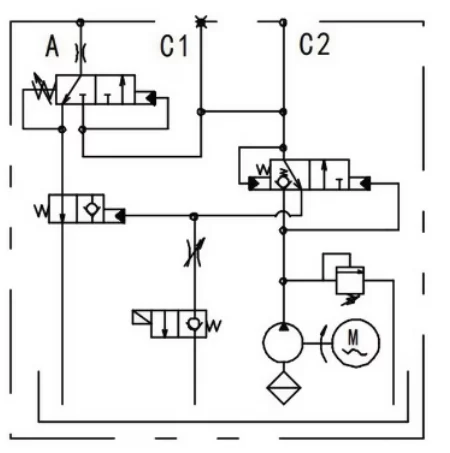

dock leveler hydraulic pump circuit diagram

The dock leveler power pack manages heavy loads through a precise five-step hydraulic cycle.

  • Initiation: The dock leveler hydraulic pump draws filtered oil from the reservoir to start the cycle.

  • Lifting: Pressurized fluid drives the main cylinder to raise the platform to its peak.

  • Extension: Oil redirects to the lip cylinder once the ramp reaches its maximum height.

  • Descent: Regulated valves allow a controlled return of oil for a smooth landing on the trailer.

  • Security: Safety valves lock the system during power loss to prevent the deck from dropping.

Technical Specifications and Advantages

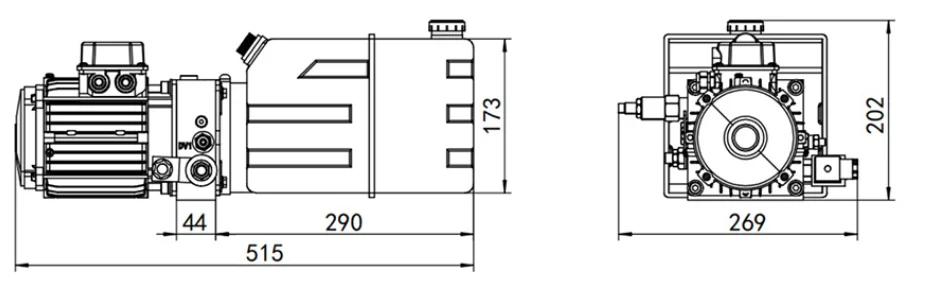

dock leveler hydraulic pump dimensions specification

Our systems provide maximum flexibility for diverse loading dock environments.

  • Cylinder Compatibility: Supports both single-acting gravity-down and double-acting powered-down configurations.

  • Custom Circuit Logic: Manifold designs can be tailored to align the dock leveler hydraulic pump performance with specific ramp or lip sequences.

  • Precision Flow Control: Integrated adjustable valves allow for exact calibration of the platform descent speed.

  • Climate Resilience: Compatible with standard and low-temperature hydraulic fluids for consistent operation in extreme environments.

Pump Type Gear Pump
Type Hydraulic Power Units
Product name Hydraulic Pump Power Unit
motor power 0.75kw
motor volt 380V AC
rated speed 2800RPM
displacement 2.1ml/r
tank capacity 5L
L(mm) 562

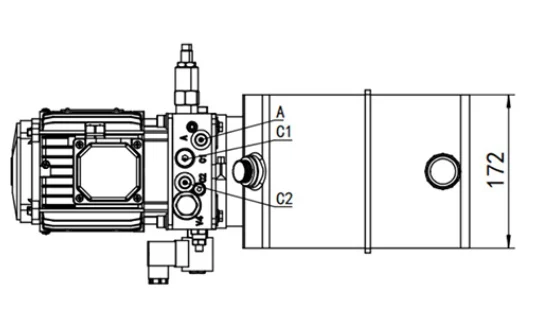

Top view schematic of a dock leveler hydraulic pump manifold showing port configurations and technical measurements.

Professional FAQ: Maintenance and Optimization

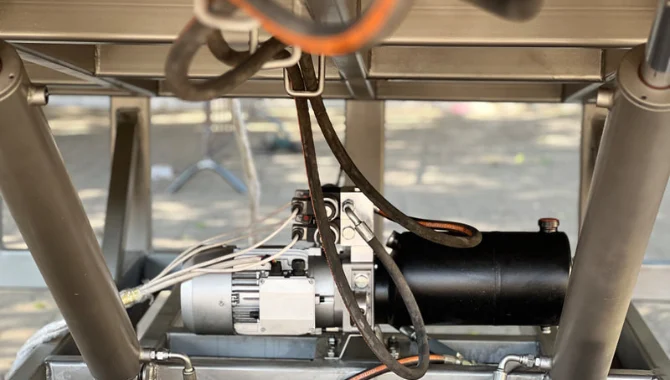

Professional installation of a dock leveler hydraulic pump power unit within a loading dock leveling system.

Facility electrical standards dictate the choice. Single phase 110V or 220V motors fit smaller setups. Industrial standard three phase 208V to 410V units ensure the dock leveler hydraulic pump maintains high thermal efficiency during heavy duty cycles.

Several mechanical factors lead to performance drops. Debris potentially obstructs the dock leveler hydraulic pump suction filter within the reservoir. Cold temperatures increase fluid viscosity. Incorrect relief valve settings also impact lifting force.

Standard environments utilize ISO 32 or ISO 46 anti wear oils. Specialized low temperature fluids like Mil-H-5606 prevent dock leveler hydraulic pump cavitation in arctic or cold storage conditions.

A manifold mounted flow control valve regulates the descent. Clockwise rotation restricts flow to decrease speed; counter clockwise rotation increases it. This ensures the dock leveler power pack operates with precise timing and operator safety.

The solenoid valve acts as the primary safety lock. During power loss, it defaults to a closed position. This traps oil in the cylinders to secure the dock leveler power pack assembly and prevent accidents.
