A 12V double acting hydraulic pump powers both sides of a double-acting cylinder, providing controlled extension and retraction from a vehicle or auxiliary battery. The unit must match the required force, speed, oil volume, electrical supply, duty cycle, valve circuit, ports, controls, and mounting space.
What Is a 12V Double Acting Hydraulic Pump?

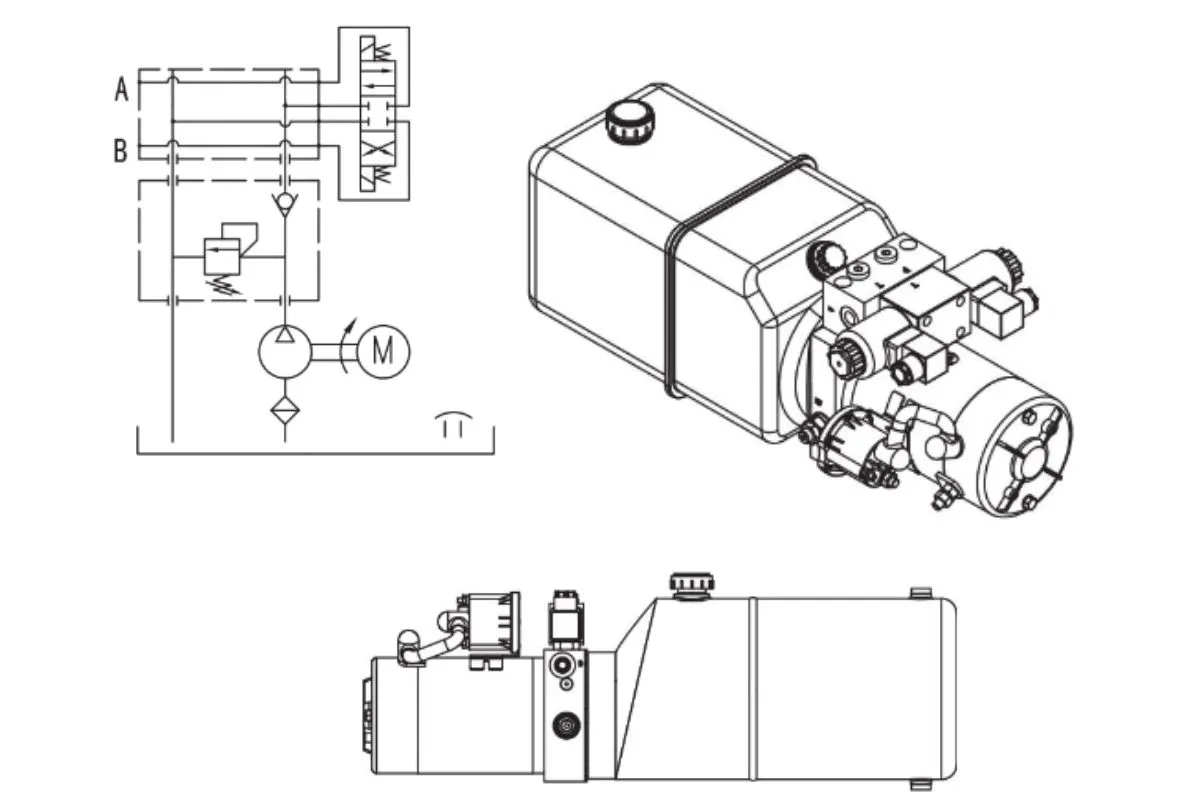

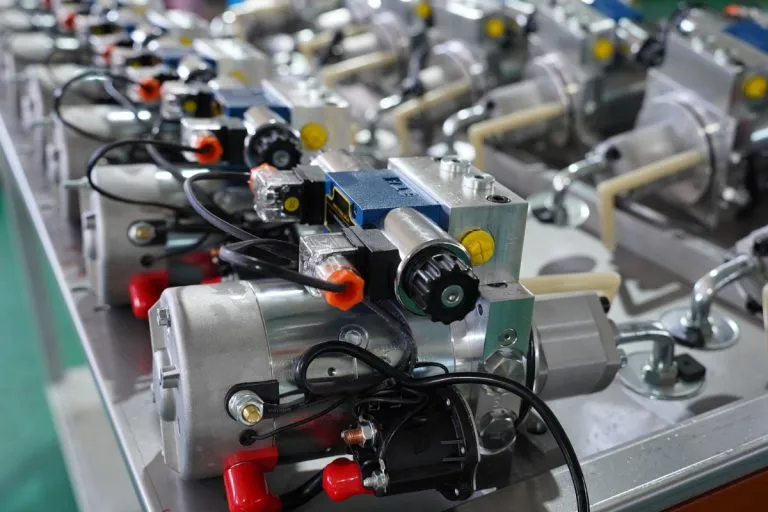

A 12V double acting hydraulic pump is normally a compact DC hydraulic power unit that sends pressurized oil alternately to the cap end and rod end of a double-acting cylinder. The assembly typically combines a 12V DC motor, gear pump, reservoir, manifold, relief valve, check or load-control functions, directional control, and electrical controls.
How Does a 12 Volt Double Acting Hydraulic Pump Work?
A 12 volt double acting hydraulic pump actively extends and retracts the cylinder by changing the direction of oil flow. A typical valve-controlled sequence is:
- 1Extend: The 12V motor drives the pump. The directional valve routes pump flow to port A, while oil from port B returns to the reservoir.
- 2Hold: When the control is released, the valve returns to its specified neutral state. Check valves, counterbalance valves, or other load-holding functions retain the load where the machine design requires them.
- 3Retract: The directional valve routes pump flow to port B, while oil from port A returns to the reservoir.
- 4Protect: The relief valve limits circuit pressure. Its setting must be matched to the cylinder, hoses, valves, structure, and expected load; it is not a substitute for correct system sizing.
Pressure creates cylinder force, while flow determines cylinder speed. Because the full-bore area and annular rod-side area are different, extension and retraction speed and force will also differ at the same pump flow and pressure.
Which Double-Acting Circuit Types Are Common?
Two compact arrangements used in double-acting systems are a unidirectional pump with a directional valve and a purpose-designed reversible pump circuit. The suitable arrangement depends on load holding, neutral behavior, control response, flow path, and the machine risk assessment.
| Circuit type | How direction changes | Best fit | Main checks |
|---|---|---|---|
| Directional-valve power unit | A solenoid or manual 4-way valve sends pump flow to A or B | General mobile equipment, trailers, gates, clamps, and lifts | Valve center condition, load-control valves, coil voltage, manual override, pressure and return paths |
| Reversible-pump power unit | A purpose-designed reversible motor/pump changes the flow direction between A and B | Compact bidirectional systems with a validated circuit | Pump suitability in both directions, make-up oil, relief protection, load holding, motor control and stopping behavior |
Do not classify a power-up/gravity-down circuit as double acting. A gravity-down unit powers one direction and lets the load return oil to the tank; a true 12V hydraulic pump double acting circuit supplies hydraulic power in both directions.

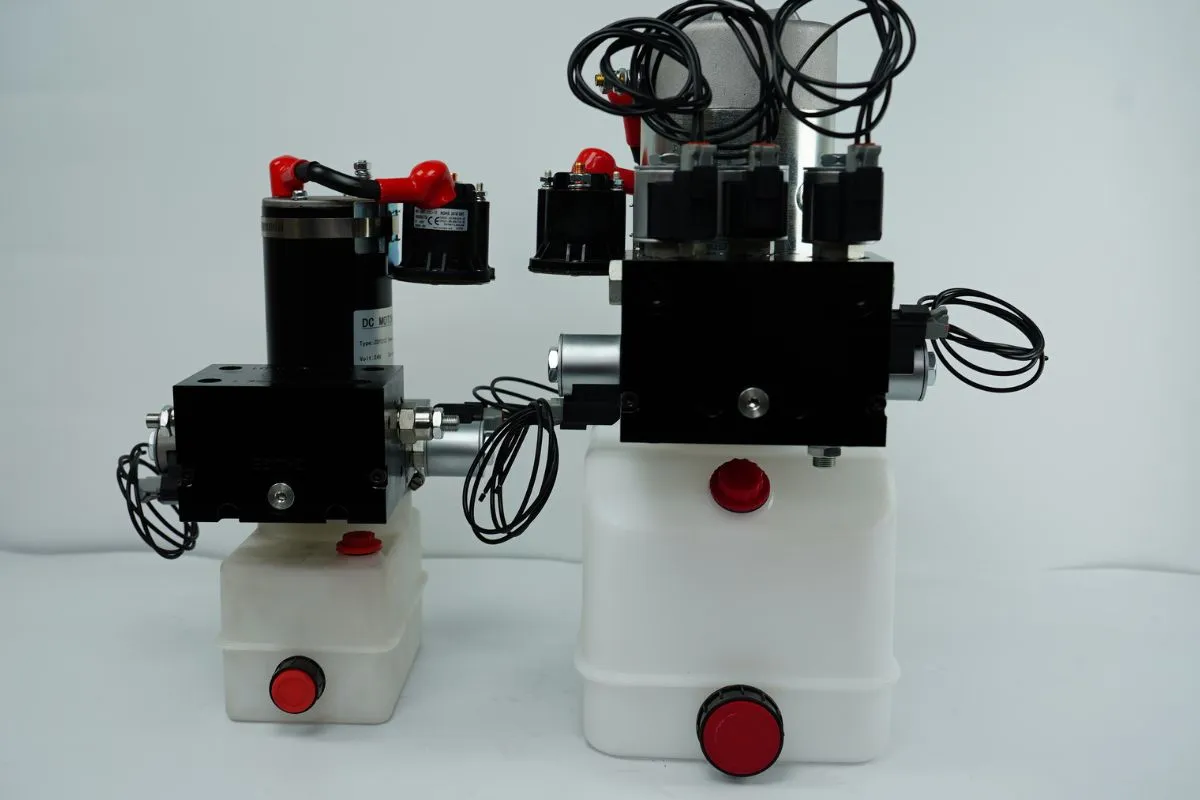

When Is a 12V Double-Acting Unit the Right Choice?
A double-acting unit is appropriate when the actuator must be driven positively in both directions or when gravity cannot provide a controlled return stroke. Common applications include:
If your cylinder requires powered movement in both directions, compare Jade Crown 12V double-acting power unit options for a compatible configuration.
What Determines Pressure, Flow, and Reservoir Capacity?
Pressure must provide the required cylinder force, flow determines extension and retraction speed, and usable reservoir volume must cover the oil-volume change through the full cylinder cycle. These values depend on cylinder bore, rod diameter, stroke, load, linkage geometry, target travel time, and duty cycle; copying the ratings of a retail model can produce slow, unstable, or overheated operation.
The motor, battery, cables, protection, and ground path must support the unit under load. When a separate or replacement tank is needed, Jade Crown also supplies hydraulic reservoir tank options; its capacity, material, breather, suction pickup, mounting orientation, and connections must match the power unit.
What Should Be Checked Before Installation?
Before commissioning, confirm the A/B port connections, mounting direction, oil level, approved fluid, clean hoses, and correct fitting threads. Check that the battery cables, circuit protection, contactor, connectors, and ground path match the motor and cable length.
Bleed trapped air according to the equipment manufacturer’s instructions, inspect for leaks, and test extension, holding, retraction, relief, and emergency functions under controlled conditions. Never increase the relief setting to compensate for an undersized or mechanically obstructed system.
Why Choose Jade Crown Hydraulic?
Jade Crown Hydraulic is a professional hydraulic power unit manufacturer supporting standard products, OEM orders, and application-specific configurations.
To reduce specification errors before an order is placed, send your cylinder, duty-cycle, and installation data to our professional team for technical advice.
Frequently Asked Questions
What is a 12V double acting hydraulic pump?
A 12V double acting hydraulic pump is a DC power unit that sends pressurized oil to either side of a double-acting cylinder for powered extension and retraction.
What is the difference between single-acting and double-acting hydraulic power units?
A single-acting unit powers one direction and relies on gravity, a spring, or an external load for return. A double-acting unit powers both directions.
How many amps does a 12 volt hydraulic pump draw?
There is no universal value. Current depends on motor rating, pressure, startup load, battery voltage, efficiency, and cable loss.
Can a double-acting hydraulic pump be used on a single-acting cylinder?
Not by simply plugging one work port. Use a correctly engineered valve and return path, or select a circuit designed for a single-acting cylinder.
How do I size the reservoir for a double-acting cylinder?
Calculate the maximum oil-volume change through the full cylinder cycle, then allow enough usable oil above the suction pickup and free space for expansion and return flow.
The right 12 volt DC hydraulic pump double acting configuration must be verified against the complete machine. For a standard product, replacement, or OEM batch, request a configuration review, lead-time confirmation, and quotation from Jade Crown Hydraulic.
