Project Description

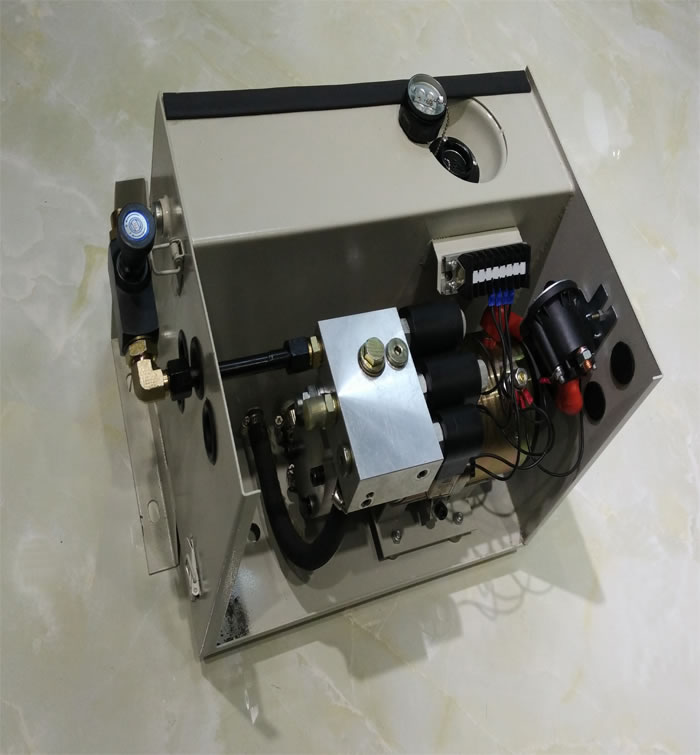

Hydraulic Liftgate Pump
- Reservoir Capacity: Steel 3.17Gal
- Motor: 24V DC 2KW
- Flow: 1.65 to 2.11 GPM
- Valve: Cartridge valve
- System Pressure: 1740/2320PSI
- Oil Port: G3/8 or M16x1.5 A/B
- Manufacturer Warranty: 1 year Limited Warranty
This hydraulic liftgate pump which is equipped with a 24V DC 2KW hydraulic motor and the cartridge valve is widely used in truck lift gate. The system pressure is 1740 to 2320PSI and the flow is 1.65 to 2.11GPM. The oil reservoir is steel and the capacity is 3.17 gal. The oil port is G3/8 or M16x1.5 A/B.

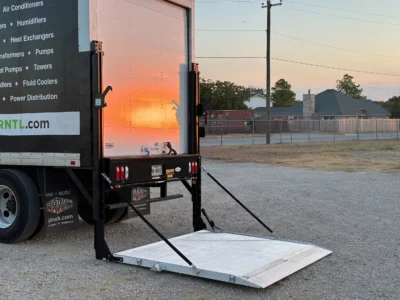

With a closed structure, this power unit is used to control the opening/closing and lifting/lowering of tailgates of trucks. The pressure is compensated by the flow control valve, so that can make sure to be regulated the opening and lowering speed automatically.

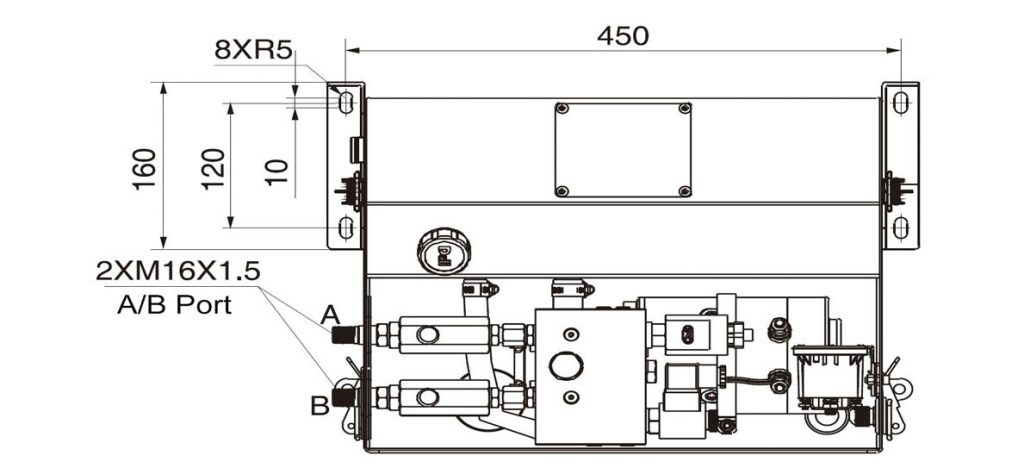

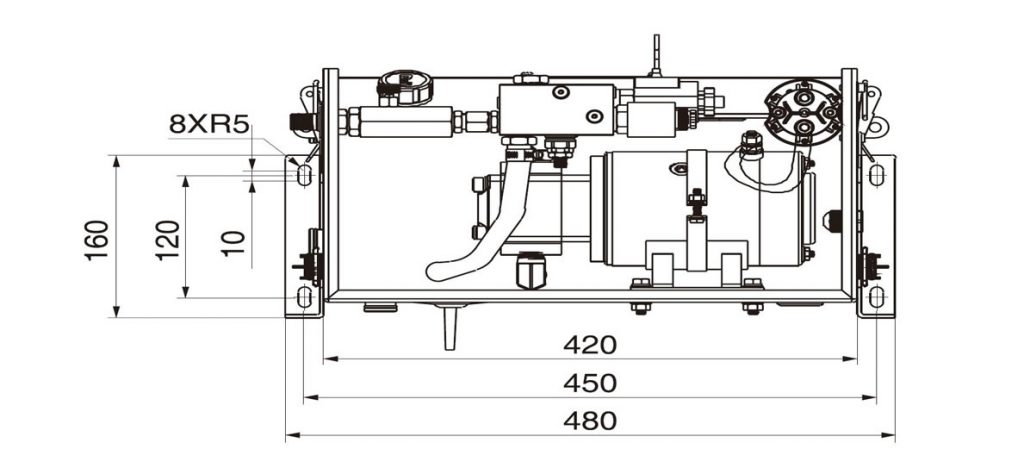

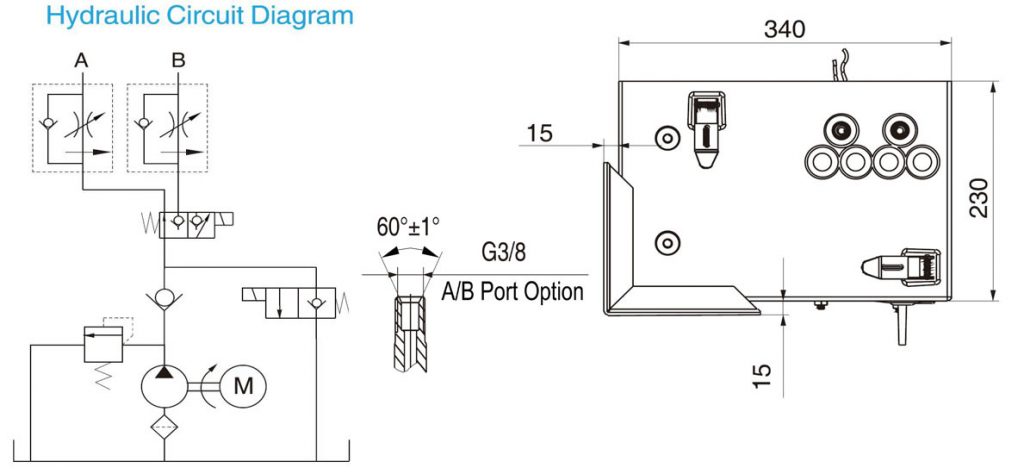

Drawing
Precautions
- Due to various types of hydraulic system failure occur more than 80% of the problems are caused by hydraulic oil, so the correct use of hydraulic oil to ensure the system’s reliability is very important.The oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.The hydraulic oil should be filtered by a 10-30um filter before put into use.N46 hydraulic oil is recommended.
- Clean all the hydraulic parts concerned before mounting mini hydraulic power pack.Check the oil level in the tank after the initial running of small hydraulic power unit.
- Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.We are at your disposal to offer you the power unites with your favorite power,flow,pressure as well as the tank capacity.
- The electric hydraulic pump should be horizontal installation.
- The electric hydraulic pump is of S3 duty, i.e., non-continuous operation,30 seconds on and 270 seconds off.
- To achieve thermal equilibrium of the electric motor, we have to assure that the ratio between interval time and operation time of mini hydraulic power pack is 1:9.
| Model | Volt engine | Motor Power | Nominal Speed | Displacement | System Pressure | Tank Capacity |
|---|---|---|---|---|---|---|
| HPP 70CE2.512D2404H | 24 volt DC | 2KW | 2500RPM | 2.5mL/r | 16MPa | 12L |
| HPP 70CD3.212D2404H | 24 volt DC | 2KW | 2500RPM | 3.2mL/r | 12MPa | 12L |
